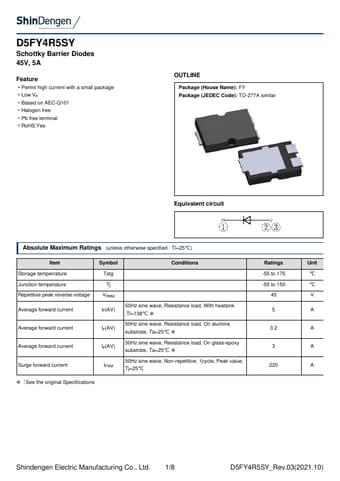

D5FY4R5SY Schottky Barrier Diodes 45V, 5A Feature Permit high current with a small package Low VF Based on AEC-Q101 Halogen free Pb free terminal RoHS:Yes OUTLINE Package (House Name): FY Package (JEDEC Code): TO-277A similar Equivalent circuit Absolute Maximum Ratings (unless otherwise specified : Tl=25℃) Item Symbol Conditions Ratings Unit Storage temperrature Tstg -55 to 175 ℃ Junction temperature Tj -55 to 150 ℃ Repetitive peak reverse voltage VRRM 45 V Average forward current IF(AV) 50Hz sine wave, Resistance load, With heatsink ,Tl=138℃ ※ 5 A Average forward current IF(AV) 50Hz sine wave, Resistance load, On alumina substrate, Ta=25℃ ※ 3.
