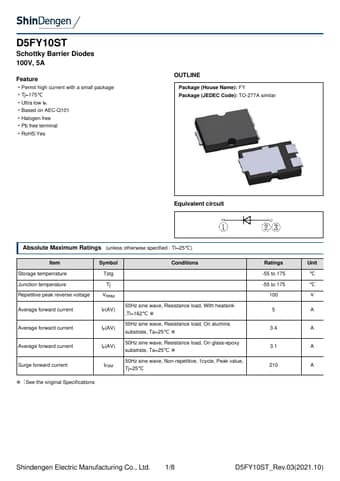

D5FY10ST
Schottky Barrier Diodes 100V, 5A
Feature
Permit high current with a small package Tj=175℃ Ultra low IR Based on AEC-Q101 Halogen free Pb free terminal RoHS:Yes
OUTLINE
Package (House Name): FY Package (JEDEC Code): TO-277A similar
Equivalent circuit
Absolute Maximum Ratings (unless otherwise specified : Tl=25℃)
Item
Symbol
Conditions
Ratings
Unit
Storage temperrature
Tstg
-55 to 175
℃
Junction temperature
Tj
-55 to 175
℃
Repetitive peak reverse voltage
VRRM
100
V
Average forward current
IF(AV)
50Hz sine wave, Resistance load, With heatsink ,Tl=162℃ ※
5
A
Average forward current
IF(AV)
50Hz sine wave, Resistance load, On alumina substrate, Ta=25℃ ※
3.
