MTD1361F - Stepper Motor Driver

Features

  • Unipolar motor driver IC (DMOS output) n Unipolar drive system n DMOS output (low loss and low generation of heat) n TTL and CMOS compatible gate n 4-phase input (simultaneous ON prevention function) n Constant current control n Integrated flywheel diodes and no external Zener diode needed n Surface mount type package with heatsink (HSOP28) HSOP-28 g Absolute maximum ratings / Ta=25℃ Parameter Logic input voltage DMOS output breakdown voltage Flywheel diode voltage Output current Flywheel dio.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MTD1302 TMOS POWER FET Motorola
MTD1312 Power MOSFET ON Semiconductor
MTD1350 Infrared Flat Top Photo Diode Marktech
MTD1373F Stepping motor driver Shindengen
MTD1375F Stepping motor driver Shindengen

Other Datasheets by Shindengen

Part Number Description
MTD1361 Unipolar motor driver
MTD1110 Stepping Motor Driver
MTD1120 Stepping Motor Driver
MTD1120F Stepping Motor Driver
MTD2001 Stepping Motor Driver ICs

Full PDF Text Transcription

Click to expand full text

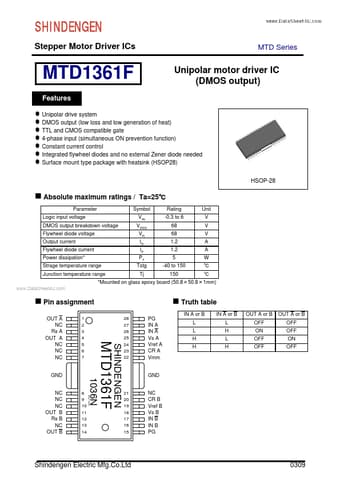

SHINDENGEN Stepper Motor Driver ICs MTD Series MTD1361F Features Unipolar motor driver IC (DMOS output) n Unipolar drive system n DMOS output (low loss and low generation of heat) n TTL and CMOS compatible gate n 4-phase input (simultaneous ON prevention function) n Constant current control n Integrated flywheel diodes and no external Zener diode needed n Surface mount type package with heatsink (HSOP28) HSOP-28 g Absolute maximum ratings / Ta=25℃ Parameter Logic input voltage DMOS output breakdown voltage Flywheel diode voltage Output current Flywheel diode current Power dissipation* Strage temperature range Junction temperature range www.DataSheet4U.com Symbol VIN VDSS VR ID IF PT Tstg Tj Rating -0.3 to 6 68 68 1.2 1.
