SGM2267 - SPDT Analog Switch

Shengbang Microelectronics

The SGM2267 by Shengbang Microelectronics is a SPDT Analog Switch. Below is the official datasheet preview.

Datasheet Details

Part number	SGM2267
Manufacturer	Shengbang Microelectronics
File Size	358.01 KB
Description	SPDT Analog Switch
Datasheet	SGM2267-ShengbangMicroelectronics.pdf

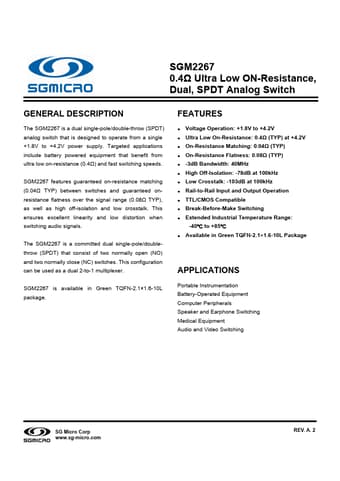

Additional preview pages of the SGM2267 datasheet.

The SGM2267 is a dual single-pole/double-throw (SPDT) analog switch that is designed to operate from a single +1.8V to +4.2V power supply.

guaranteed on-resistance matching (0.04Ω TYP) between switches and guaranteed onresistance flatness over the signal range (0.08Ω TYP), as well as high off-isolation and low crosstalk. This ensures excellent linearity and low distortion when switching audio signals. The SGM2267 is a committed dual single-pole/doublethrow (SPDT) that consist of two normally open (NO) and two normally close (NC) switches. This configuration can be used as a dual 2-to-1 multiplexer. SGM2267 is available in Green TQF.
