30EPS120 - Standard Rectifier

📥 Download Datasheet

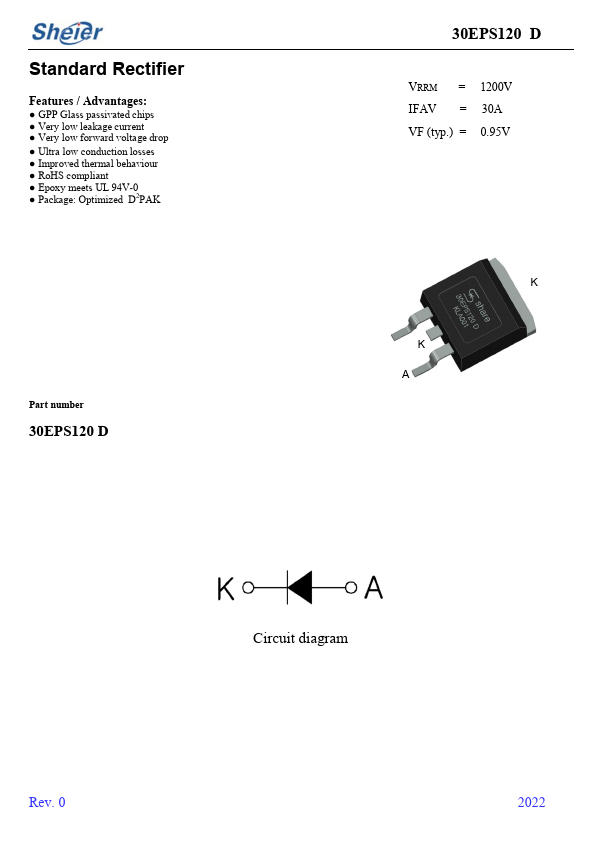

30EPS120 Datasheet Preview — Preview of 30EPS120 PDF

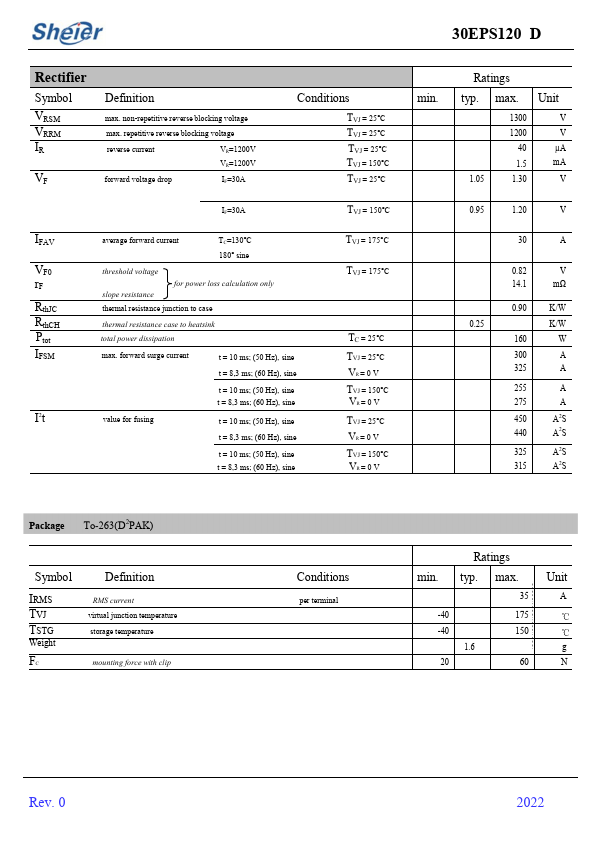

datasheet Preview Page 2

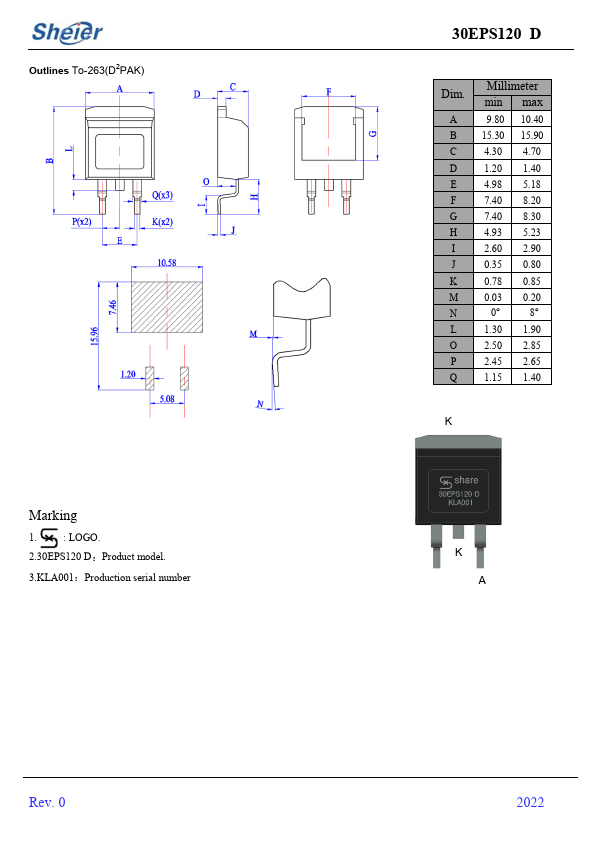

datasheet Preview Page 3

Datasheet Details

Part number	30EPS120
Manufacturer	Sheier
File Size	744.13 KB
Description	Standard Rectifier
Datasheet	30EPS120-Sheier.pdf

30EPS120 Product details

Features

/ Advantages:.
GPP Glass passivated chips.
Very low leakage current.
Very low forward voltage drop.
Ultra low conduction losses.
Improved thermal behaviour.
RoHS compliant.
Epoxy meets UL 94V-0.
Package: Optimized D2PAK Part number 30EPS120 D 30EPS120 D VRRM = 1200V IFAV = 30A VF (typ. ) = 0.95V K K A Rev. 0 Circuit diagram 2022 30EPS120 D Rectifier Symbol VRSM VRRM IR VF Definition max. non-repetitive reverse blocking voltage max. repetitive revers.
