PQ12RF1V - 1A Output Low Power-Loss Voltage Regulators

Name: PQ12RF1V
SKU: PQ12RF1V-465513

Sharp

The PQ12RF1V by Sharp is a 1A Output Low Power-Loss Voltage Regulators. Below is the official datasheet preview.

Datasheet Details

Part number	PQ12RF1V
Manufacturer	Sharp
File Size	65.48 KB
Description	1A Output Low Power-Loss Voltage Regulators
Datasheet	PQ12RF1V_SharpElectrionicComponents.pdf

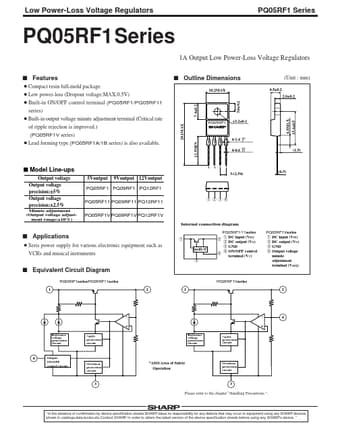

Additional preview pages of the PQ12RF1V datasheet.

¡Compact resin full-mold package ¡Low power-loss (Dropout voltage:MAX.0.5V) ¡ Built-in ON/OFF control terminal (PQ05RF1/PQ05RF11 series) ¡Built-in output voltage minute adjustment terminal (Critical rate of ripple rejection is improved. ) (PQ05RF1V series) ¡Lead forming type (PQ05RF1A/1B series) is also available. s Outline Dimensions 10.2MAX 4.5±0.2 (Unit : mm) 2.8±0.2 7.4±0.2 29.1MAX PQ05RF1 4-1.4 +0.3 -0 13.5MIN 4-0.6 +0.2 -0.1 s Model Line-ups Output voltage Output voltage precisi.
