LR36685 - Vertical Driver IC for CCD Area Sensors

Sharp

The LR36685 by Sharp is a Vertical Driver IC for CCD Area Sensors. Below is the official datasheet preview.

📥 Download Datasheet

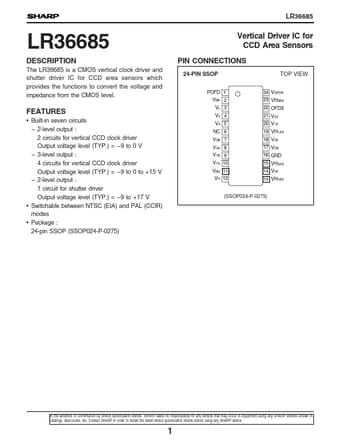

LR36685 Vertical Driver IC for CCD Area Sensors by Sharp - Datasheet Preview — Official preview page of the **LR36685** Vertical Driver IC for CCD Area Sensors datasheet (Sharp).

Datasheet Details

Part number	LR36685
Manufacturer	Sharp
File Size	63.79 KB
Description	Vertical Driver IC for CCD Area Sensors
Datasheet	LR36685_SharpElectrionicComponents.pdf
Additional preview pages of the LR36685 datasheet.

LR36685 Product details

Description

The LR36685 is a CMOS vertical clock driver and shutter driver IC for CCD area sensors which provides the functions to convert the voltage and impedance from the CMOS level.

Features

Built-in seven circuits.
2-level output : 2 circuits for vertical CCD clock driver Output voltage level (TYP. ) =.
9 to 0 V.
3-level output : 4 circuits for vertical CCD clock driver Output voltage level (TYP. ) =.
9 to 0 to +15 V.
2-level output : 1 circuit for shutter driver Output voltage level (TYP. ) =.
9 to +17 V.
Switchable between NTSC (EIA) and PAL (CCIR) modes.
Package : 24-pin SSOP (SSOP024-P-0275) (SSOP024-P.
