LQ5AW136 - Color TFT-LCD Module(Car Navigation)

Sharp

Datasheet Details

Part number	LQ5AW136
Manufacturer	Sharp
File Size	115.99 KB
Description	Color TFT-LCD Module(Car Navigation)

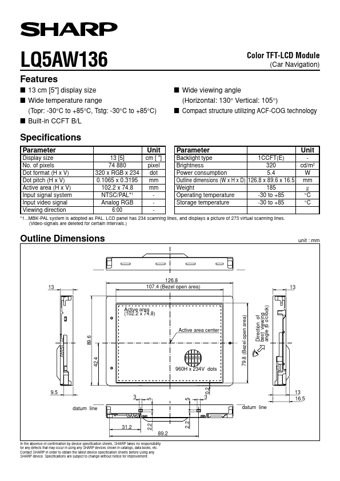

Datasheet	LQ5AW136_SharpElectrionicComponents.pdf

s 13 cm [5"] display size s Wide temperature range (Topr: -30°C to +85°C, Tstg: -30°C to +85°C) s Built-in CCFT B/L Color TFT-LCD Module (Car Navigation) s Wide viewing angle (Horizontal: 130° Vertical: 105°) s Compact structure utilizing ACF-COG technology Specifications Parameter Display size No. of pixels Dot format (H x V) Dot pitch (H x V) Active area (H x V) Input signal system Input video signal Viewing direction 13 [5] 74 880 320 x RGB x 234 0.1065 x 0.3195 102.2 x 74.8 NTSC/PAL.
1.
