LQ4FN31 - Color TFT-LCD Module for AV/Car Navigation(LCD TV/Digital still camera/LCD camcorder)

Sharp

Datasheet Details

Part number	LQ4FN31
Manufacturer	Sharp
File Size	54.58 KB
Description	Color TFT-LCD Module for AV/Car Navigation(LCD TV/Digital still camera/LCD camcorder)
Datasheet	LQ4FN31_SharpElectrionicComponents.pdf

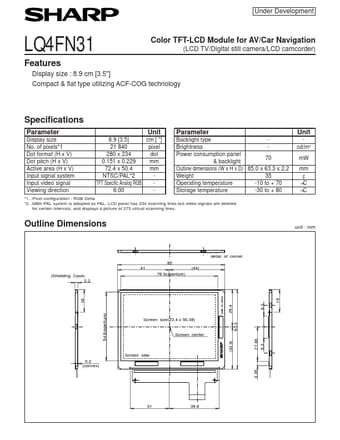

n n Display size : 8.9 cm [3.5"] Color TFT-LCD Module for AV/Car Navigation (LCD TV/Digital still camera/LCD camcorder) Compact & flat type utilizing ACF-COG technology Specifications Parameter Display size No. of pixels.
1 Dot format (H x V) Dot pitch (H x V) Active area (H x V) Input signal system Input video signal Viewing direction Unit 8.9 [3.5] cm [ "] 21 840 pixel 280 x 234 dot 0.151 x 0.229 mm 72.4 x 50.4 mm NTSC/PAL.
2 TFT Specific Analog RGB 6:00 - Parameter Backlight type B.
