LH28F128SPHTD-PTL12A - Flash Memory

Sharp

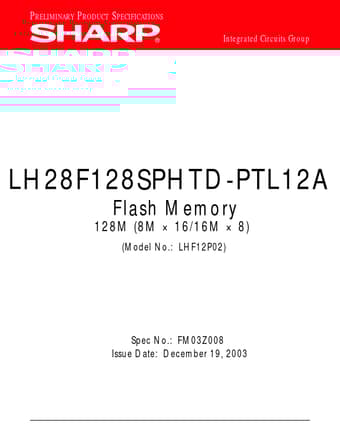

The LH28F128SPHTD-PTL12A by Sharp is a Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

LH28F128SPHTD-PTL12A Flash Memory by Sharp - Datasheet Preview — Official preview page of the **LH28F128SPHTD-PTL12A** Flash Memory datasheet (Sharp).

Datasheet Details

Part number	LH28F128SPHTD-PTL12A
Manufacturer	Sharp
File Size	258.33 KB
Description	Flash Memory
Datasheet	LH28F128SPHTD-PTL12A-Sharp.pdf
Additional preview pages of the LH28F128SPHTD-PTL12A datasheet.

LH28F128SPHTD-PTL12A Product details

Description

4 CE0, CE1, BS Truth Table 5 Memory Map 6 Identifier Codes Address 8 OTP Block Address Map 9 Bus Operation 10 Command Definitions 11 Functions of Block Lock 13 Status Register Definition 14 Extended Status Register Definition 15 STS Configuration Definition 16 PAGE 1 Electrical Specifications 17 1.1 Absolute Maximum Ratings 17 1.2 Operating Conditions 17 1.2.1 Capacitance 18 1.2.2 AC Input/Output Test Conditions 18 1.2.3 DC Characteristics 19 1.2.4 AC Characteristics Read-Only Operati

Features

Individual Block Lock.
Absolute Protection with VPEN≤VPENLK.
Block Erase, (Page Buffer) Program Lockout during Power Transitions.
Automated Erase/Program Algorithms.
Program Time 210µs (Typ. ).
Block Erase Time 1s (Typ. ).
Cross-Compatible Command Support.
Basic Command Set.
Common Flash Interface (CFI).
Extended Cycling Capability.
Minimum 100,000 Block Erase Cycles.
56-Lead TSOP (Normal B.
