IRM048U Power Amplifier

Vdet-LB Vb2-LB NC Rating 6 5 300 1 -30 - +120 -25 - +85 Unit Vc1-LB Vdd-LB GND Not Used 24 Vbb2_LB Vcc1_LB Vdet_LB Vdd_LB GND 19 Vcc Pin Icc Pt Tstg Tc_opr V dBm Vbb1_LB 1 18 RFout/Vcc2_LB RFout/Vcc2_LB GND Vb1-LB RFin_LB GND 25(backside) 18 RFout/Vc2-LB GND RFout/Vcc3_HB RFout.

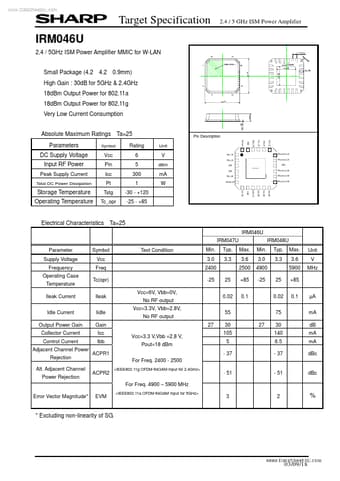

www.DataSheet4U.com Target Specification IRM046U 2.4 / 5GHz ISM Power Amplifier MMIC for W-LAN E Small Package (4.2 ~ 4.2 ~ 0.9mm) E High Gain : 30dB for 5GHz & 2.4GHz E 18dBm Output Power for 802.11a E 18dBm Output Power for 802.11g E Very Low Current Consumption 2.4 / 5 GHz ISM Power Amplifier œ Absolute Maximum Ratings i Ta=25 j Ž Parameters DC Supply Voltage Input RF Power Peak Supply Current T.

IRM046U_SharpMicroelectronics.pdf

IRM048U Datasheet Preview — This datasheet PDF includes multiple part numbers: IRM048U, IRM046U. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRM048U, IRM046U

Manufacturer:

Sharp Microelectronics

File Size:

56.96 KB

Description:

Power amplifier.

Note:

This datasheet PDF includes multiple part numbers: IRM048U, IRM046U.
Please refer to the document for exact specifications by model.
