PQ1CY503LZPH, PQ1CY333LZPH - (PQ1CYxx3LZPH) To-263 Surface Mount Type Chopper Regulator

Name: PQ1CY503LZPH
SKU: PQ1CY503LZPH-599384

Sharp Electrionic

The PQ1CY503LZPH by Sharp Electrionic is a (PQ1CYxx3LZPH) To-263 Surface Mount Type Chopper Regulator. Below is the official datasheet preview.

📥 Download Datasheet

PQ1CY503LZPH (PQ1CYxx3LZPH) To-263 Surface Mount Type Chopper Regulator by Sharp Electrionic - Datasheet Preview — Official preview page of the **PQ1CY503LZPH** (PQ1CYxx3LZPH) To-263 Surface Mount Type Chopper Regulator datasheet (Sharp Electrionic).

Datasheet Details

Part number	PQ1CY503LZPH, PQ1CY333LZPH
Manufacturer	Sharp Electrionic
File Size	162.18 KB
Description	(PQ1CYxx3LZPH) To-263 Surface Mount Type Chopper Regulator
Datasheet	PQ1CY333LZPH_SharpElectrionic.pdf
Note	This datasheet PDF includes multiple part numbers: PQ1CY503LZPH, PQ1CY333LZPH. Please refer to the document for exact specifications by model.

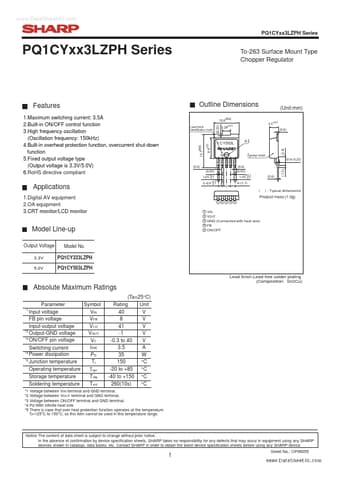

Additional preview pages of the PQ1CY503LZPH datasheet.

PQ1CY503LZPH Product details

Features

1.Maximum switching current: 3.5A 2.Built-in ON/OFF control function 3.High frequency oscillation (Oscillation frequency: 150kHz) 4.Built-in overheat protection function, overcurrent shut-down function 5.Fixed output voltage type (Output voltage is 3.3V/5.0V) 6.RoHS directive compliant.
Outline Dimensions 10.6MAX. Lead finish identification mark (Unit:mm) 3.5±0.5 (0.6) (0.55) 3.28±0.5 13.7MAX. 8.4±0.5 1 C Y503L φ2 H Epoxy resin (0.6) (0.45) 1.05+0.2.
0.1 4.
(1.7) (.
