PQ1CX12H2ZP - Boot Strap System Chopper Regulator

Name: PQ1CX12H2ZP
SKU: PQ1CX12H2ZP-599377

Sharp Electrionic

The PQ1CX12H2ZP by Sharp Electrionic is a Boot Strap System Chopper Regulator. Below is the official datasheet preview.

Datasheet Details

Part number	PQ1CX12H2ZP
Manufacturer	Sharp Electrionic
File Size	137.73 KB
Description	Boot Strap System Chopper Regulator
Datasheet	PQ1CX12H2ZP_SharpElectrionic.pdf

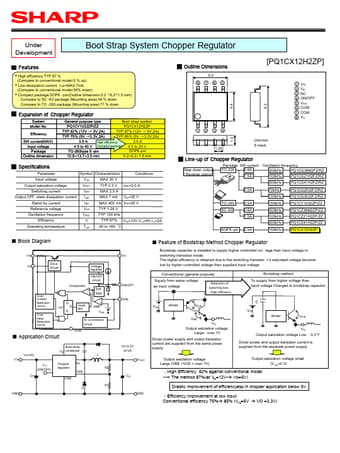

Additional preview pages of the PQ1CX12H2ZP datasheet.

Boot Strap System Chopper Regulator Outline Dimensions 5.2 8 7 6 5 1 2 3 4 5 6 7 8 VIN VB NC ON/OFF Vadj COM COM VO [PQ1CX12H2ZP] 4.4 Expansion of Chopper Regulator System Model No. Efficiency SW current(MAX) Input voltage Package Outline dimension General purpose type Boot strap system PQ1CY1032ZP/ZZ PQ1CX12H2ZP TYP 82% (12V → 5V,2A) TYP 87% (12V → 5V,2A) TYP 75% (5V → 3.3V,2A) TYP 85% (5V → 3.3V,2A) 3.5 A 2.5 A High efficiency 4.5 to 40 V Compact package 4.5 to 20 V TO-263type 5 -pin SOP8.
