S16MD01 - 8-Pin SSR

Sharp Electrionic Components

Datasheet Details

Part number	S16MD01
Manufacturer	Sharp Electrionic Components
File Size	66.85 KB
Description	8-Pin SSR
Datasheet	S16MD01_SharpElectrionicComponents.pdf

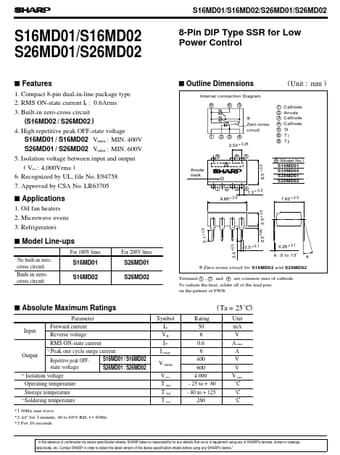

1. Compact 8-pin dual-in-line package type 2. RMS ON-state current IT : 0.6Arms 3. Built-in zero-cross circuit (S16MD02 / S26MD02 ) 4. High repetitive peak OFF-state voltage S16MD01 / S16MD02 VDRM : MIN. 400V S26MD01 / S26MD02 VDRM : MIN. 600V 5. Isolation voltage between input and output ( Viso : 4,000Vrms ) 6. Recognized by UL, file No. E94758 7. Approved by CSA No. LR63705 8-Pin DIP Type SSR for Low Power Control s Outline Dimensions Internal connection Diagram 8 6 5 g Zero-cross circuit 1.
