S101S16V Solid State Relays

S101S16V Description

S101S15V/S101S16V/S201S15V/S201S16V S101S15V/S101S16V S201S15V/S201S16V s .

S101S16V Features

* 1. High radiation resin mold package I T : MAX. 3A rms 2. Isolation voltage between input and output Viso : 3 000 Vrms 3. Built-in zero-cross circuit ( S101S16V/ S201S16V) 4. Built-in snubber circuit 5. Recognized by UL, file No. E94758 Approved by CSA, file No. LR63705 SIP Type SSR with Built-in S

S101S16V Applications

* 1. Air conditioners 2. OA equipment 11.2MIN. 0.6 ± 0.1 s Model Line-ups No built-in zero-cross circuit Built-in zero-cross circuit 19.6 ± 0.2 (36.0) (5.08) (7.62) (2.54) (1.4) For 100V lines S101S15V S101S16V For 200V lines S201S15V S201S16V g May not be externally connected Internal connec

📥 Download Datasheet

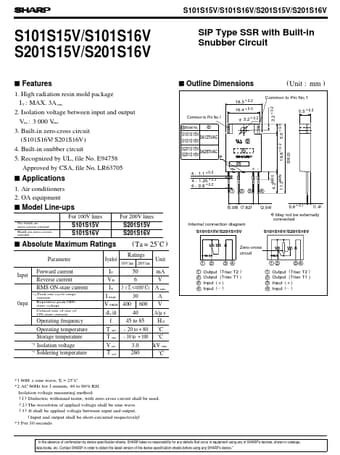

Preview of S101S16V PDF
datasheet Preview Page 2 datasheet Preview Page 3
