LT1461ED - Dot Matrix LED Unit

Sharp Electrionic Components

Datasheet Details

Part number	LT1461ED
Manufacturer	Sharp Electrionic Components
File Size	245.64 KB
Description	Dot Matrix LED Unit
Datasheet	LT1461ED_SharpElectrionicComponents.pdf

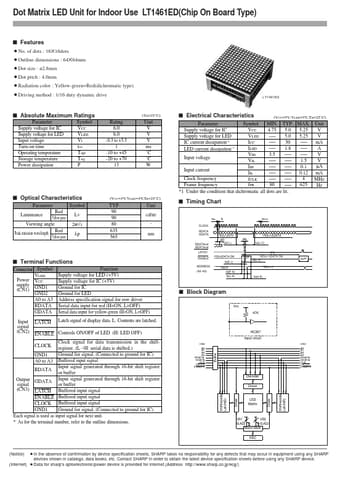

¡No. of dots : 16!16dots ¡Outline dimensions : 64!64mm ¡Dot size : ø2.8mm ¡Dot pitch : 4.0mm ¡Radiation color : Yellow-green+Red(dichromatic type) ¡Driving method : 1/16 duty dynamic drive LT1461ED s Absolute Maximum Ratings Parameter Supply voltage for IC Supply voltage for LED Input voltage Turn-on time Operating temperature Storage temperature Power dissipation Symbol VCC VLED VI tON Topr Tstg P Rating 6.0 6.0 -0.3 to +5.5 1 -10 to +45 -20 to +70 13 (Ta=25˚C) s Electrical Characteristics P.
