LM13X33 - Color STN-LCD Module

Name: LM13X33
SKU: LM13X33-63966

Sharp Electrionic Components

The LM13X33 by Sharp Electrionic Components is a Color STN-LCD Module. Below is the official datasheet preview.

Datasheet Details

Part number	LM13X33
Manufacturer	Sharp Electrionic Components
File Size	50.71 KB
Description	Color STN-LCD Module
Datasheet	LM13X33_SharpElectrionicComponents.pdf

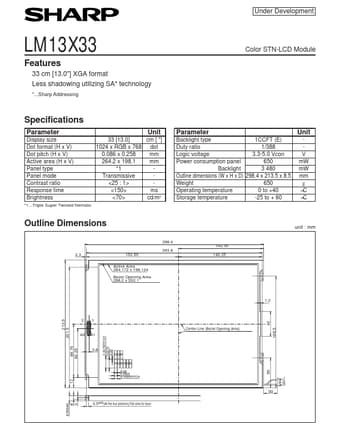

Additional preview pages of the LM13X33 datasheet.

n n 33 cm [13.0"] XGA format Less shadowing utilizing SA.
technology.
Sharp Addressing Color STN-LCD Module Specifications Parameter Display size Dot format (H x V) Dot pitch (H x V) Active area (H x V) Panel type Panel mode Contrast ratio Response time Brightness.
1Triple Super Twisted Nematic Unit 33 [13.0] cm [ "] 1024 x RGB x 768 dot 0.086 x 0.258 mm 264.2 x 198.1 mm.
1 Transmissive ms cd/m2 Parameter Backlight type 1CCFT (E) Duty ratio 1/388 Logic vol.
