GL5PR4 - 5mm(T-1 3/4)/ Cylinder Type/ Colored Diffusion LED Lamps for Wide Viewing Angle Indicator

📥 Download Datasheet

Datasheet preview – GL5PR4

Datasheet Details

Part number GL5PR4
Manufacturer Sharp Corporation
File Size 86.89 KB
Description 5mm(T-1 3/4)/ Cylinder Type/ Colored Diffusion LED Lamps for Wide Viewing Angle Indicator
Datasheet download datasheet GL5PR4 Datasheet
Additional preview pages of the GL5PR4 datasheet.

📁 Similar Datasheet

  • GL5PRxxx - High Luminosity LED Lamp (Sharp)
  • GL5010 - 100mA 100KHz DC-DC CONVERTOR BOOST REGULATOR (Gleam)
  • GL5050 - 500mA 500KHz DC-DC CONVERTOR BOOST REGULATOR (Gleam)
  • GL5171 - 1.5A 280kHz DC-DC CONVERTOR BOOST REGULATOR (Gleam)
  • GL520SM - Microprocessor System Hardware Monitor (GENESYS LOGIC)
  • GL5401 - PNP EPITAXIAL PLANAR TRANSISTOR (GTM CORPORATION)
  • GL55 - Photoresistor (CdS)
  • GL5516 - GL5516 - GL5549 Photoresistor (ETC)
  • GL5516 - (GL5516 - GL5549) Photoresistor (CdS)
  • GL5516 - (GL5516 - GL5659D) PHOTO CONDUCTIVE CELL (ETC)
Other Datasheets by Sharp Electrionic Components
  • GL5PR40 - 5mm(T-1 3/4)/ Cylinder Type/ Colored Transparency LED Lamps for Indicator
  • GL5PR41 - 5mm(T-1 3/4)/ Cylinder Type/ Colored Transparency LED Lamps for Backlight/Indicator
  • GL5PR43 - 5mm(T-1 3/4)/ Cylinder Type/ Colorless Transparency LED Lamps for Indicator
  • GL5PR44 - 5mm(T-1 3/4)/ Cylinder Type/ Colorless Transparency LED Lamps for Backlight/Indicator
  • GL5PR47 - 5mm(T-1 3/4)/ Inverted Cone Type/ Colored Transparency LED Lamps for Backlight
  • GL5PR8 - 5mm(T-1 3/4)/ Cylinder Type/ Colored Diffusion LED Lamps for Indicator
  • GL513 - TO-18 Type Infrared Emitting Diode
  • GL513F - TO-18 Type Infrared Emitting Diode

Full PDF Text Transcription

Click to expand full text

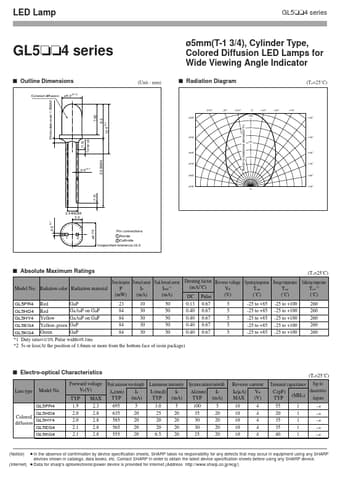

LED Lamp GL5tt4 series GL5tt4 series s Outline Dimensions Colored diffusion Protruded resin 1.5MAX ø5.0±0.15 ø5mm(T-1 3/4), Cylinder Type, Colored Diffusion LED Lamps for Wide Viewing Angle Indicator (Unit : mm) s Radiation Diagram (Ta=25˚C) -030˚ -20˚ -010˚ 0˚ 100 +10˚ +20˚ +30˚ +40˚ 7.85 8.6 -040˚ ±0.5 Relative luminous intensity(%) 12.4 80 +50˚ 60 (1.0) (Tie-bar cut) -050˚ -060˚ +60˚ 40 +70˚ 20 +80˚ 23.0MIN -070˚ 0.5±0.1 -080˚ -090˚ 0 +90˚ 2.54NOM 2.5 0.5±0.1 (1.0) 1 2 Pin connections 1 Anode 2 Cathode Unspecified tolerance:±0.2 s Absolute Maximum Ratings Model No. Radiation color Radiation material Power dissipation Forward current Peak forward current P IF IFM*1 (mW) (mA) (mA) ø5.
