GL533 - High Speed Infrared Emitting Diode for Camera AF (Automatic Focusing)

Features

  • 1. Small spot light diameter for easy beam diaphragming (TYP. : φ 0.6 mm) 2. High positional accuracy of optical axis (accuracy : ± 0.1 mm) 3. High output type (radiant flux Φ e : TYP. 13mW) 4. Low peak forward voltage type (peak forward voltage V FM : TYP. 2.0V) 5. PSD.
  • Equivalent to peak sensitivity wavelength of detectors (PD3101F and PD3151F) (peak emission wavelength : TYP. 940 nm) PSD.
  • : Position Sensitive Device High Speed Infrared Emitting Diode for Camera AF (Automatic Focusin.

📥 Download Datasheet

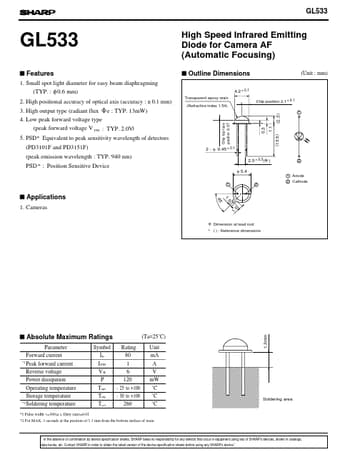

Datasheet preview – GL533

Datasheet Details

Part number GL533
Manufacturer Sharp Corporation
File Size 22.95 KB
Description High Speed Infrared Emitting Diode for Camera AF (Automatic Focusing)
Datasheet download datasheet GL533 Datasheet
Additional preview pages of the GL533 datasheet.

📁 Similar Datasheet

  • GL5010 - 100mA 100KHz DC-DC CONVERTOR BOOST REGULATOR (Gleam)
  • GL5050 - 500mA 500KHz DC-DC CONVERTOR BOOST REGULATOR (Gleam)
  • GL5171 - 1.5A 280kHz DC-DC CONVERTOR BOOST REGULATOR (Gleam)
  • GL520SM - Microprocessor System Hardware Monitor (GENESYS LOGIC)
  • GL5401 - PNP EPITAXIAL PLANAR TRANSISTOR (GTM CORPORATION)
  • GL55 - Photoresistor (CdS)
  • GL5516 - GL5516 - GL5549 Photoresistor (ETC)
  • GL5516 - (GL5516 - GL5549) Photoresistor (CdS)
  • GL5516 - (GL5516 - GL5659D) PHOTO CONDUCTIVE CELL (ETC)
  • GL5516 - (GL5516 - GL5549) Photoresistor (SENBA)
Other Datasheets by Sharp Electrionic Components
  • GL537 - 5mm Resin Mold Type Infrared Emitting Diode
  • GL537 - 5MM RESIN MOLD TYPE INFRARED LIGHT EMITTING DIODE
  • GL538 - 5mm Resin Mold Type Infrared Emitting Diode
  • GL538 - 5MM RESIN MOLD TYPE INFRARED LIGHT EMITTING DIODE
  • GL513 - TO-18 Type Infrared Emitting Diode
  • GL513F - TO-18 Type Infrared Emitting Diode
  • GL514 - TO-18 Type Infrared Emitting Diode
  • GL527 - 5MM RESIN MOLD TYPE INFRARED LIGHT EMITTING DIODE

Full PDF Text Transcription

Click to expand full text
GL533 GL533 s Features 1. Small spot light diameter for easy beam diaphragming (TYP. : φ 0.6 mm) 2. High positional accuracy of optical axis (accuracy : ± 0.1 mm) 3. High output type (radiant flux Φ e : TYP. 13mW) 4. Low peak forward voltage type (peak forward voltage V FM : TYP. 2.0V) 5. PSD* Equivalent to peak sensitivity wavelength of detectors (PD3101F and PD3151F) (peak emission wavelength : TYP. 940 nm) PSD * : Position Sensitive Device High Speed Infrared Emitting Diode for Camera AF (Automatic Focusing) s Outline Dimensions 4.2 ± 0.1 Transparent epoxy resin (Refractive index 1.54) Chip position 2.1 ± 0.1 (Unit : mm) Chip top face position 0.07 0.3 1.1 2 - φ 0.45 ± 0.1 2.5 ± 0.3(g ) φ 5.4 1 2 (13.5 ) (2.3 ) 1 2 1 Anode 2 Cathode s Applications 1. Cameras 1. 0 1.
