GL100MN0MP, GL100MN0MPx - Infrared Emitting Diode

Name: GL100MN0MP
SKU: GL100MN0MP-696343

Sharp Electrionic Components

The GL100MN0MP by Sharp Electrionic Components is a Infrared Emitting Diode. Below is the official datasheet preview.

Datasheet Details

Part number	GL100MN0MP, GL100MN0MPx
Manufacturer	Sharp Electrionic Components
File Size	0.96 MB
Description	Infrared Emitting Diode
Datasheet	GL100MN0MPx_SharpElectrionicComponents.pdf
Note	This datasheet PDF includes multiple part numbers: GL100MN0MP, GL100MN0MPx. Please refer to the document for exact specifications by model.

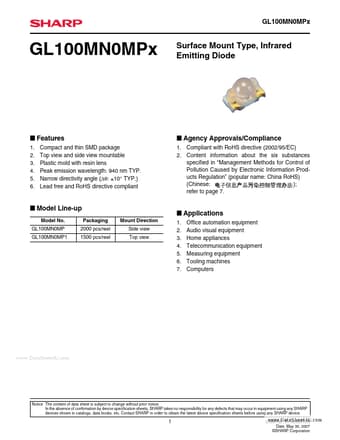

Additional preview pages of the GL100MN0MP datasheet.

s 1. 2. 3. 4. 5. 6. Compact and thin SMD package Top view and side view mountable Plastic mold with resin lens Peak emission wavelength: 940 nm TYP. Narrow directivity angle (Δθ : ±10° TYP. ) Lead free and RoHS directive compliant.
Agency Approvals/Compliance 1. Compliant with RoHS directive (2002/95/EC) 2. Content information about the six substances specified in “Management Methods for Control of Pollution Caused by Electronic Information Products Regulation” (popular name: China RoHS) (C.
