090RDA1SZH - PQ090RDA1SZH

Datasheet Summary

Features

1.Low power-loss Dropout voltage: MAX.0.5V 2.Output current: 1A www. DataSheet4U. com 3.Low dissipation current (Dissipation current at no load: MAX. 8mA Output OFF-state dissipation current: MAX.5μA) 4.Built-in ON/OFF function 5.Built-in overcurrent and overheat protection functions 6.Built-in ASO protect function 7.RoHS directive compliant.
Outline Dimensions (Unit : mm) 3.6±0.2 (1.5) 10.2MAX. (6.8) 4.5±0.2 2.8±0.2 7.4±0.2 4.
( ø1.4) 15.6±0.5 050RDA2 29.1MAX. H ø3.2±0.1 Epoxy.

Sharp Electrionic Components

📥 Download Datasheet

Datasheet Details

Part number	090RDA1SZH
Manufacturer	Sharp Electrionic Components
File Size	234.05 KB
Description	PQ090RDA1SZH
Datasheet	090RDA1SZH Datasheet
Additional preview pages of the 090RDA1SZH datasheet.

📁 Similar Datasheet

0906 - Air Core Inductors (Coilcraft)
0908SQ - Square Air Core Inductors (Coilcraft)
0909ND - MOSFET (Infineon)
0909NS - Power MOSFET (Infineon)
090N03L - Power Transistor (Infineon)
090N03LG - Power Transistor (Infineon)

Other Datasheets by Sharp Electrionic Components

Full PDF Text Transcription

Click to expand full text

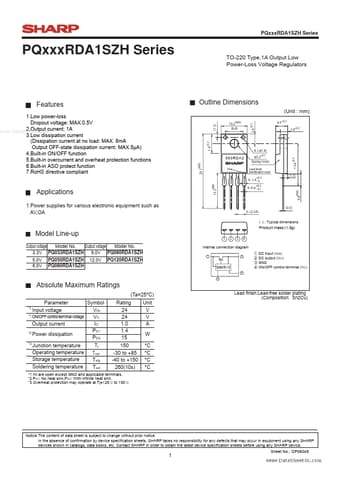

PQxxxRDA1SZH Series PQxxxRDA1SZH Series TO-220 Type,1A Output Low Power-Loss Voltage Regulators Features 1.Low power-loss Dropout voltage: MAX.0.5V 2.Output current: 1A www.DataSheet4U.com 3.Low dissipation current (Dissipation current at no load: MAX. 8mA Output OFF-state dissipation current: MAX.5μA) 4.Built-in ON/OFF function 5.Built-in overcurrent and overheat protection functions 6.Built-in ASO protect function 7.RoHS directive compliant ■ Outline Dimensions (Unit : mm) 3.6±0.2 (1.5) 10.2MAX. (6.8) 4.5±0.2 2.8±0.2 7.4±0.2 4–( ø1.4) 15.6±0.5 050RDA2 29.1MAX. H ø3.2±0.1 Epoxy resin Lead finish identification mark +0.3 4–1.4 –0 13.5MIN. (1.5) 1.Power supplies for various electronic equipment such as AV,OA (0.5) 3–(2.
