AZ34063A - 1.5A Step-Down / Step-Up / Inverting DC-DC Converter

Product Overview

Shanghai SIM-BCD Semiconductor

Part number	AZ34063A
Manufacturer	Shanghai SIM-BCD Semiconductor
File Size	449.01 KB
Description	1.5A Step-Down / Step-Up / Inverting DC-DC Converter
Datasheet	AZ34063A Datasheet
Note	This datasheet PDF includes multiple part numbers: AZ34063A, AZ34063A_ShanghaiSIM. Please refer to the document for exact specifications by model.

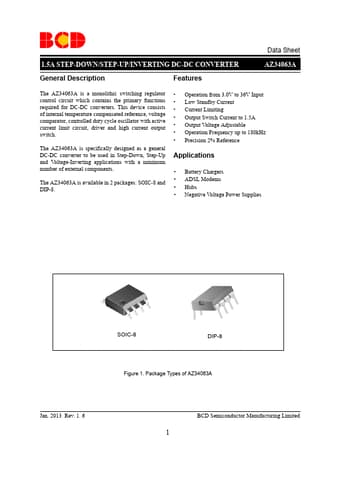

Additional preview pages of the AZ34063A datasheet.

Data Sheet AZ34063A The AZ34063A is a monolithic switching regulator control circuit which contains the primary functions required for DC-DC converters. This device consists of internal temperature compensated reference, voltage comparator, controlled duty cycle oscillator with active current limit circuit, driver and high current output switch. The AZ34063A is specifically designed as a general DC-DC converter to be used in Step-Down, Step-Up and Voltage-Inverting.
