SF101 - SUPER FAST RECTIFIER

Features

  • . Low forward voltage drop . High current capability . High reliability . High surge current capability . Super fast recovery time . Good for use in switching mode circuits . Plastic package has Underwriters Laboratory Flammability Classification 94V-0.

📥 Download Datasheet

Datasheet Details

Part number SF101
Manufacturer Shanghai Lunsure Electronic Tech
File Size 151.86 KB
Description SUPER FAST RECTIFIER
Datasheet download datasheet SF101 Datasheet

📁 Similar Datasheet

  • SF101 - SUPER FAST RECOVERY RECTIFIER (GOOD-ARK Electronics)
  • SF101 - 1.0A SOFT FAST RECOVERY RECTIFIER (Won-Top Electronics)
  • SF101 - 10.0 AMP SUPER FAST RECTIFIERS (GW)
  • SF101 - SUPER FAST RECOVERY SILICON DIODES (SEMTECH)
  • SF1010 - Super Fast Rectifiers (LGE)
  • SF1010 - SAW Filter (MTRONPTI)
  • SF1010-G - SMD Super Fast Recovery Rectifiers (Comchip Technology)
  • SF1010F - Super Fast Rectifiers (LGE)
  • SF1011 - SAW Filter (MTRONPTI)
  • SF1012 - SAW Filter (MTRONPTI)
Other Datasheets by Shanghai Lunsure Electronic Tech
  • SF102 - SUPER FAST RECTIFIER
  • SF103 - SUPER FAST RECTIFIER
  • SF104 - SUPER FAST RECTIFIER
  • SF105 - SUPER FAST RECTIFIER
  • SF106 - SUPER FAST RECTIFIER
  • SF11 - SURFACE MOUNT GALSS PASSIVATED JUNCTION RECTIFIER
  • SF12 - SURFACE MOUNT GALSS PASSIVATED JUNCTION RECTIFIER
  • SF13 - SURFACE MOUNT GALSS PASSIVATED JUNCTION RECTIFIER

Full PDF Text Transcription

Click to expand full text

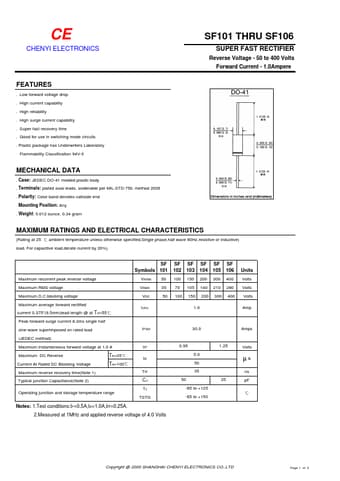

CE CHENYI ELECTRONICS SF101 THRU SF106 SUPER FAST RECTIFIER Reverse Voltage - 50 to 400 Volts Forward Current - 1.0Ampere FEATURES . Low forward voltage drop . High current capability . High reliability . High surge current capability . Super fast recovery time . Good for use in switching mode circuits . Plastic package has Underwriters Laboratory Flammability Classification 94V-0 MECHANICAL DATA . Case: JEDEC DO-41 molded plastic body . Terminals: plated axial leads, solderable per MIL-STD-750, method 2026 . Polarity: Color band denotes cathode end . Mounting Position: Any . Weight: 0.012 ounce, 0.34 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (Rating at 25 ambient temperature unless otherwise specified,Single phase,half wave 60Hz,resistive or inductive) load.
