STK8321 - Digital Output 3-axis MEMS Accelerometer

Datasheet Summary

Description

The STK8321 is a ±2g/±4g/±8g, 3-axis linear accelerometer, with digital output (I2C and SPI).

It is a low-profile capacitive MEMS sensor featuring, compensation for 0g offset and gain errors, and conversion to 12-bit digital values at user configurable samples per second.

📥 Download Datasheet

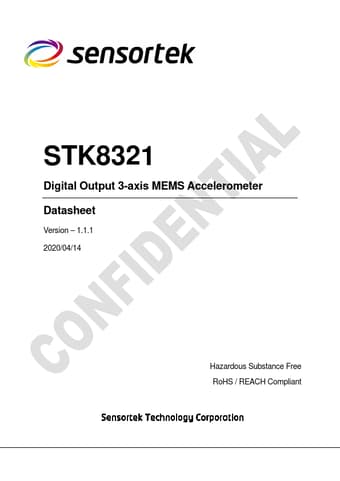

Datasheet preview – STK8321

Datasheet Details

Part number STK8321
Manufacturer Sensortek
File Size 1.12 MB
Description Digital Output 3-axis MEMS Accelerometer
Datasheet download datasheet STK8321 Datasheet
Additional preview pages of the STK8321 datasheet.

📁 Similar Datasheet

  • STK830F - Advanced Power MOSFET (AUK)
  • STK830FC - Advanced Power MOSFET (AUK)
  • STK830P - Advanced Power MOSFET (AUK)
  • STK800 - N-channel Power MOSFET (ST Microelectronics)
  • STK801 - N-Channel MOSFET (SamHop Microelectronics)
  • STK8050 - Block Diagram (ETC)
  • STK822 - N-channel Power MOSFET (STMicroelectronics)
  • STK8250 - 50W MIN AF POWER AMP (Sanyo)
  • STK8250 - (STKxxxx) Output Stage of AF Power Amp (ETC)
  • STK8260 - (STKxxxx) Output Stage of AF Power Amp (ETC)
Other Datasheets by Sensortek
  • STK8321-W - Digital Output 3-axis MEMS Accelerometer
  • STK8327 - Digital Output 3-axis MEMS Accelerometer
  • STK8328-C - Digital Output 3-axis MEMS Accelerometer
  • STK8329 - Digital Output 3-axis MEMS Accelerometer
  • STK8312 - Digital Output 3-axis MEMS Accelerometer
  • STK8313 - Digital Output 3-axis MEMS Accelerometer
  • STK8BA50-S - Digital Output 3-axis MEMS Accelerometer
  • STK8BA58 - Digital Output 3-axis MEMS Accelerometer

Full PDF Text Transcription

Click to expand full text
STK8321 Digital Output 3-axis MEMS Accelerometer Datasheet Version – 1.1.1 2020/04/14 Hazardous Substance Free RoHS / REACH Compliant STK8321 REV 1.1.1 1. OVERVIEW Description The STK8321 is a ±2g/±4g/±8g, 3-axis linear accelerometer, with digital output (I2C and SPI). It is a low-profile capacitive MEMS sensor featuring, compensation for 0g offset and gain errors, and conversion to 12-bit digital values at user configurable samples per second. The device can be arranged for sensor data changes through the interrupt pins. The STK8321 is available in a small 2.0mm x 2.0mm x 1.0 mm LGA package and it is guaranteed to operate over an extended temperature range from -40 °C to +85 °C. Feature  Low Voltage Operation: - Supply Internal Domain Voltage: 1.7V~3.6V - I/O Voltage Range: 1.62V~3.
