SMC4738PA - Single N-Channel MOSFET

SMC4738PA Description

SMC4738PA Single N-Channel MOSFET *.
FEATURES SMC4738PA is the N-Channel enhancement mode power field effect transistors are using trench DMOS technology.

SMC4738PA Features

* SMC4738PA is the N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior, fast switching performance, and withstand high energy pulse in the avalanche and comm

SMC4738PA Applications

* VDS=30V, ID=50A RDS(ON)=7mΩ(Typ. )@VGS=10V RDS(ON)=9.5mΩ(Typ. )@VGS=4.5V
* 100% EAS Guaranteed
* Low Gate Charge
* Fast Switching
* Improved dv/dt Capability
* PART NUMBER INFORMATION SMC 4738 PA - TR G a b c de a : Company name. b : Product Serial number. c : Package code PA:DF

📥 Download Datasheet

Preview of SMC4738PA PDF

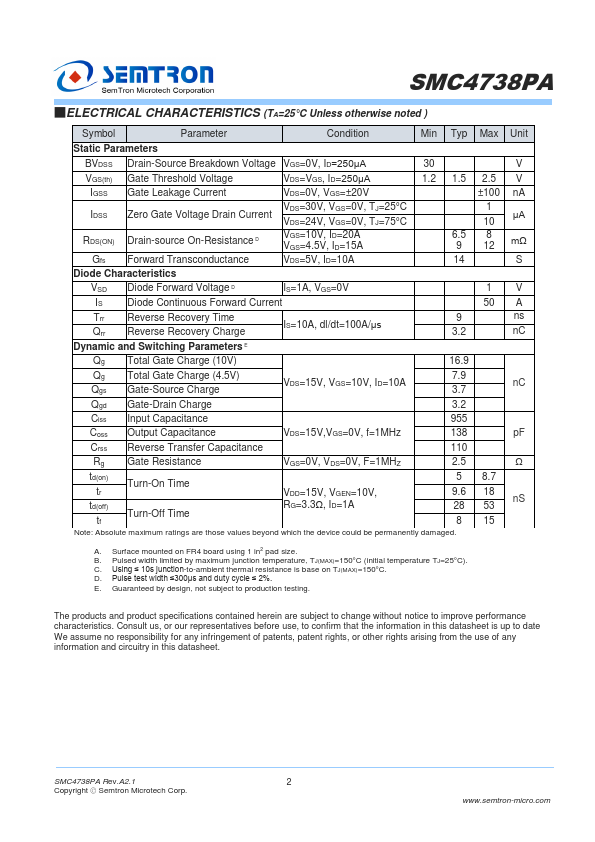

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMC4738PA
Manufacturer
Semtron
File Size
295.99 KB
Datasheet
SMC4738PA-Semtron.pdf
Description
Single N-Channel MOSFET
