SMC3535K - Single P-Channel MOSFET

Product Overview

Semtron

Datasheet Details

Part number	SMC3535K
Manufacturer	Semtron
File Size	286.37 KB
Description	Single P-Channel MOSFET
Datasheet	SMC3535K Datasheet

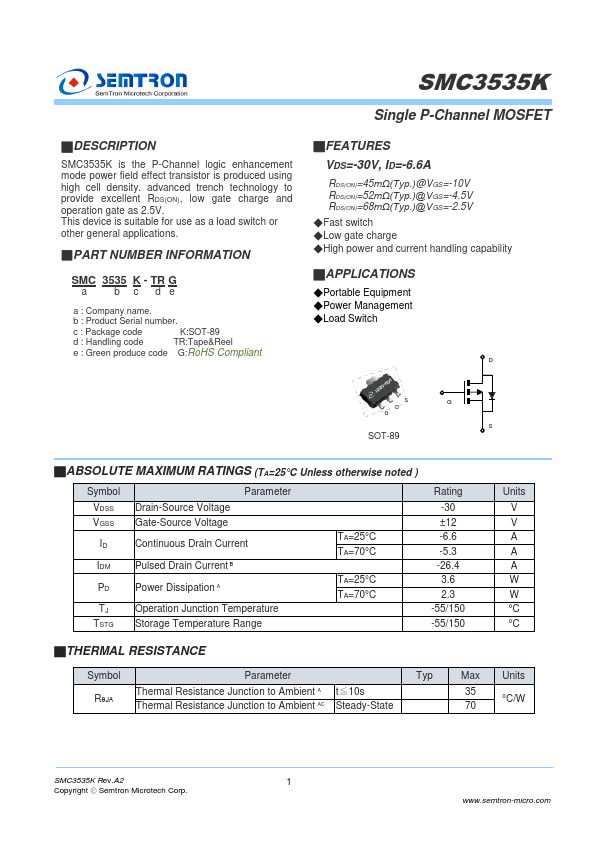

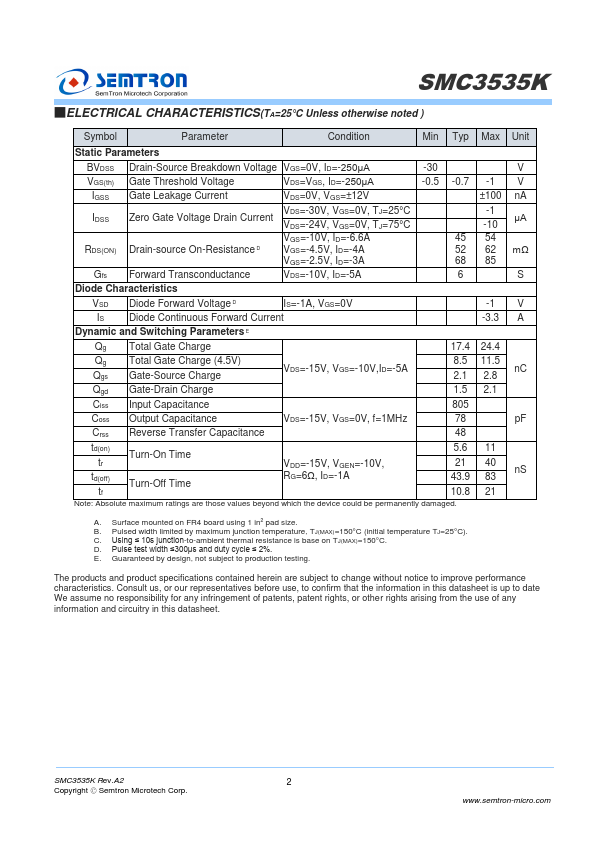

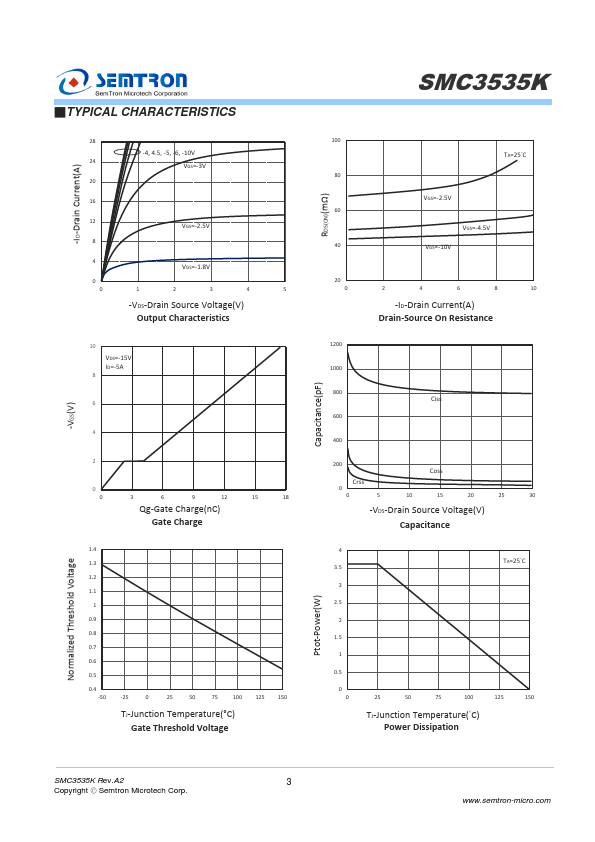

Additional preview pages of the SMC3535K datasheet.

Product details

Description

SMC3535K is the P-Channel logic enhancement mode power field effect transistor is produced using high cell density. PART NUMBER INFORMATION SMC 3535 K - TR G a b c de a : Company name.b : Product Serial number.c : Package code K:SOT-89 d : Handling code TR:Tape&Reel e : Green produce code G:RoHS Compl

Features

VDS=-30V, ID=-6.6A RDS(ON)=45mΩ(Typ. )@VGS=-10V RDS(ON)=52mΩ(Typ. )@VGS=-4.5V RDS(ON)=68mΩ(Typ. )@VGS=-2.5V.
Fast switch.
Low gate charge.
High power and current handling capability.
