SMC3401E - P-Channel Enhancement Mode MOSFET

Product Overview

📥 Download Datasheet

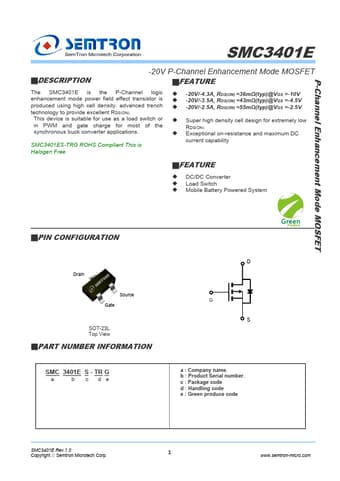

Datasheet preview – SMC3401E

Datasheet Details

Part number SMC3401E
Manufacturer Semtron
File Size 367.72 KB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet SMC3401E Datasheet
Additional preview pages of the SMC3401E datasheet.

Product details

Description

-20V P-Channel Enhancement Mode MOSFET FEATURE The SMC3401E is the P-Channel logic enhancement mode power field effect transistor is produced using high cell density.advanced trench technology to provide excellent RDS(ON).This device is suitable for use as a load switch or in PWM and gate charge for most of the synchronous buck converter applications.SMC3401ES-TRG ROHS Compliant This is Halogen Free -20V/-4.3A, RDS(ON) =36mΩ(typ)@VGS =-10V -20V/-3.5A, RDS(ON) =43mΩ(typ)@VG
