SMC3400SN - Single N-Channel MOSFET

Product Overview

Semtron

Datasheet Details

Part number	SMC3400SN
Manufacturer	Semtron
File Size	297.57 KB
Description	Single N-Channel MOSFET
Datasheet	SMC3400SN Datasheet

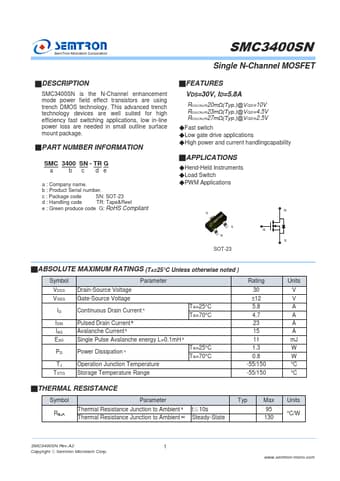

Additional preview pages of the SMC3400SN datasheet.

Product details

Description

SMC3400SN is the N-Channel enhancement mode power field effect transistors are using trench DMOS technology. PART NUMBER INFORMATION SMC 3400 SN - TR G a b c de a : Company name.b : Product Serial number.c : Package code SN: SOT-23 d : Handling code TR: Tape&Reel e : Green produce code G: RoHS Compliant

Features

VDS=30V, ID=5.8A RDS(ON)=20mΩ(Typ. )@VGS=10V RDS(ON)=23mΩ(Typ. )@VGS=4.5V RDS(ON)=27mΩ(Typ. )@VGS=2.5V.
Fast switch.
Low gate drive.
