SMC3251SN - Single P-Channel MOSFET

Description

SMC3251SN is the P-Channel trench technology devices are well suited for high efficiency fast switching applications, low in-line power loss needed in small outline surface mount package.

a : Company name.

b : Product Serial number.

Features

  • VDS=-30V, ID=-3.7A RDS(ON)=56mΩ(Typ. )@VGS=-10V RDS(ON)=80mΩ(Typ. )@VGS=-4.5V.

📥 Download Datasheet

Datasheet Details

Part number SMC3251SN
Manufacturer Semtron
File Size 300.32 KB
Description Single P-Channel MOSFET
Datasheet download datasheet SMC3251SN Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SMC32 SURFACE MOUNT PLASTIC SILICON DIODES FCI
SMC30 SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS Lite-On
SMC30 GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSORS MIC
SMC301PG LED Display American Opto Plus LED
SMC30A SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS Lite-On

Other Datasheets by Semtron

Part Number Description
SMC3251S Single P-Channel MOSFET
SMC3206H Single N-Channel MOSFET
SMC3223S Single P-Channel MOSFET
SMC3232S Single N-Channel MOSFET
SMC3240DM Dual N-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

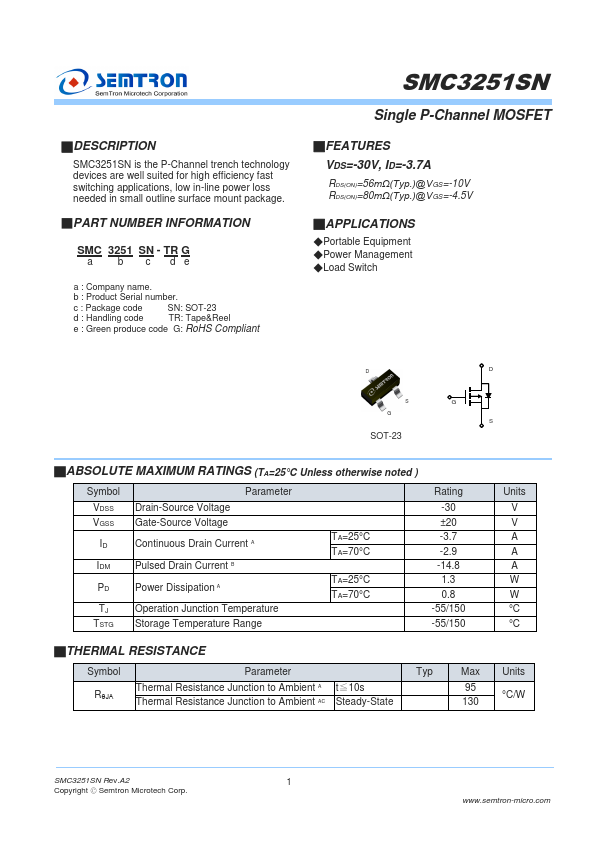

■DESCRIPTION SMC3251SN is the P-Channel trench technology devices are well suited for high efficiency fast switching applications, low in-line power loss needed in small outline surface mount package. ■PART NUMBER INFORMATION SMC 3251 SN - TR G a b c de a : Company name. b : Product Serial number. c : Package code SN: SOT-23 d : Handling code TR: Tape&Reel e : Green produce code G: RoHS Compliant SMC3251SN Single P-Channel MOSFET ■FEATURES VDS=-30V, ID=-3.7A RDS(ON)=56mΩ(Typ.)@VGS=-10V RDS(ON)=80mΩ(Typ.)@VGS=-4.
