SMC3240H Single N-Channel MOSFET

SMC3240H Description

SMC3240H Single N-Channel MOSFET *.
SMC3240H is the N-Channel enhancement mode power field effect transistors, provide superior fast switching performance and withstand high energy pulse.

SMC3240H Features

* VDS=30V, ID=53A RDS(ON)=7mΩ(Typ. )@VGS=10V RDS(ON)=9mΩ(Typ. )@VGS=4.5V
* High power and current handling capability
* 100% EAS Guaranteed

SMC3240H Applications

* DC/DC Converter
* Power Management D D G S TO-252 G S
* ABSOLUTE MAXIMUM RATINGS (TA=25°C Unless otherwise noted ) Symbol VDSS VGSS ID IDM ID PD IAS EAS PD TJ TSTG Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current
* Pulsed Drain Current B Continuou

📥 Download Datasheet

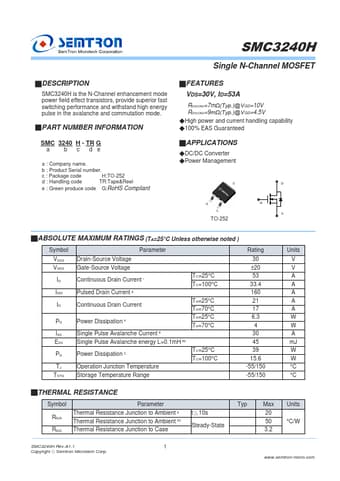

Preview of SMC3240H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMC3240H
Manufacturer
Semtron
File Size
306.17 KB
Datasheet
SMC3240H-Semtron.pdf
Description
Single N-Channel MOSFET
