TClamp3312N - Surge Protection

Download the TClamp3312N datasheet PDF (TClamp2512N included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surge protection.

Description

TClamp®2512N and TClamp3312N are specifically designed to provide secondary surge and ESD protection for Ethernet and telecom interfaces.

Features

  • Transient Protection to ŒŒ Bellcore 1089 (Intra-Building) 120A (8/20µs) ŒŒ IEC 61000-4-2 (ESD) 30kV (Air), 30kV (Contact) ŒŒ IEC 61000-4-4 (EFT) 4kV (5/50ns) ŒŒ IEC 61000-4-5 (Lightning) 120A (8/20µs).
  • Small SLP package saves board space.
  • Working Voltage Options: 2.5V and 3.3V.
  • Low Capacitance: 8pF Maximum (Line-to-Line).
  • Low Dynamic Resistance.
  • Solid-State Silicon-Avalanche Technology Mechanical Characteristics.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TClamp2512N-Semtech.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • TCLAMP3302N - Low Capacitance TVS (Semtech Corporation)
  • TCLAMP0602N - Low Capacitance TVS (Semtech Corporation)
  • TCLAMP2502N - Low Capacitance TVS (Semtech Corporation)
  • TCL-REM240 - Industrial Power Supplies (TRACO Electronic)
  • TCL024-105 - Industrial Power Supplies (TRACO POWER)
  • TCL024-112 - Industrial Power Supplies (TRACO POWER)
  • TCL024-124 - Industrial Power Supplies (TRACO POWER)
  • TCL024-124C - Industrial Power Supplies (TRACO POWER)
  • TCL060-112 - Industrial Power Supplies (TRACO POWER)
  • TCL060-112C - Industrial Power Supplies (TRACO POWER)
Other Datasheets by Semtech

Full PDF Text Transcription

Click to expand full text

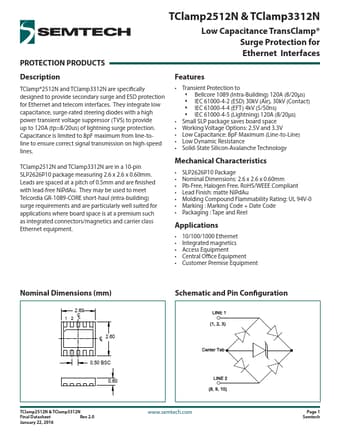

TClamp2512N & TClamp3312N PROTECTION PRODUCTS Low Capacitance TransClamp® Surge Protection for Ethernet Interfaces Description TClamp®2512N and TClamp3312N are specifically designed to provide secondary surge and ESD protection for Ethernet and telecom interfaces. They integrate low capacitance, surge-rated steering diodes with a high power transient voltage suppressor (TVS) to provide up to 120A (tp=8/20us) of lightning surge protection. Capacitance is limited to 8pF maximum from line-toline to ensure correct signal transmission on high-speed lines. TClamp2512N and TClamp3312N are in a 10-pin SLP2626P10 package measuring 2.6 x 2.6 x 0.60mm. Leads are spaced at a pitch of 0.5mm and are finished with lead-free NiPdAu.
