RClamp0524PQ - 4-Line Surge and ESD Protection

Description

RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces.

Features

  • Transient Protection to s IEC 61000-4-2 (ESD) 25kV (Air), 15kV (Contact) s IEC 61000-4-4 (EFT) 4kV (5/50ns) s IEC 61000-4-5 (Lightning) 5A (8/20µs) s ISO-10605 (ESD) 20kV (Air), 12kV (Contact).
  • Quali ed to AEC-Q100, Grade 1.
  • Protects four High-Speed Data Lines.
  • Working Voltage: 5V.
  • Low Capacitance: 0.8 pF Maximum (I/O to GND).
  • Dynamic Resistance: 0.43 Ohms (Typ).
  • Solid-State Silicon-Avalanche Technology Mechanical Characteristics.

📥 Download Datasheet

Datasheet Details

Part number RClamp0524PQ
Manufacturer SEMTECH
File Size 611.56 KB
Description 4-Line Surge and ESD Protection
Datasheet download datasheet RClamp0524PQ Datasheet

📁 Similar Datasheet

  • RCLAMP0524P - Ultra Low Capacitance TVS Arrays (Semtech Corporation)
  • RCLAMP0524P - Ultra-low Capacitance Transient Voltage Suppressors (TWGMC)
  • RClamp0524PA - Ultra Low Capacitance TVS Arrays (Semtech Corporation)
  • RCLAMP0524J - TVS Array (Semtech Corporation)
  • RCLAMP0521P-N - bi-directional TVS Diode (DOWOSEMI)
  • RClamp0521Z - TVS DIODE (Leiditech)
  • RCLAMP0522P - TVS Diode (Leiditech)
  • RClamp0522PA - Ultra Low Capacitance TVS Arrays (Semtech Corporation)
  • RCLAMP0502A - Low Capacitance TVS Array (Semtech Corporation)
  • RCLAMP0502N - Low Capacitance TVS Array (Semtech Corporation)
Other Datasheets by Semtech

Full PDF Text Transcription

Click to expand full text

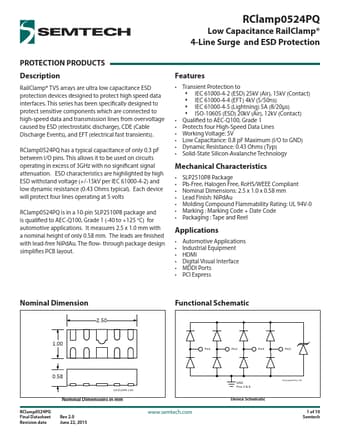

RClamp0524PQ Low Capacitance RailClamp® 4-Line Surge and ESD Protection PROTECTION PRODUCTS Description RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces. This series has been speci cally designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients). RClamp0524PQ has a typical capacitance of only 0.3 pF between I/O pins. This allows it to be used on circuits operating in excess of 3GHz with no signi cant signal attenuation. ESD characteristics are highlighted by high ESD withstand voltage (+/-15kV per IEC 61000-4-2) and low dynamic resistance (0.
