1N6466US - (1N6461US - 1N6468US) QPL 500 Watt Surface Mount TVS

This page provides the datasheet information for the 1N6466US, a member of the 1N6461US (1N6461US - 1N6468US) QPL 500 Watt Surface Mount TVS family.

Description

The 1N64xx series of transient voltage suppressors are designed to protect military and commercial electronic equipment from overvoltages caused by lightning, ESD, EFT, inductive load switching, and EMP.

Features

  • ‹ ‹ ‹ ‹ ‹ ‹ 500 Watts peak pulse power (tp = 10/1000µs) Voidless hermetically sealed glass package Metallurgically bonded High surge capacity Unidirectional Available in JTX, and JTXV versions per MIL-S-19500/551.

📥 Download Datasheet

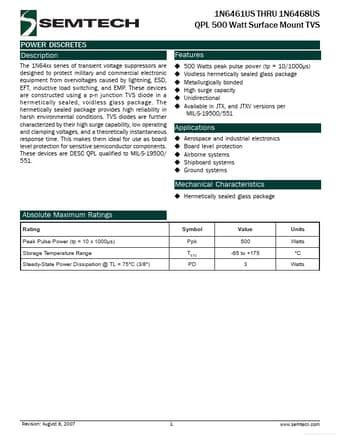

Datasheet preview – 1N6466US

Datasheet Details

Part number 1N6466US
Manufacturer SEMTECH
File Size 147.54 KB
Description (1N6461US - 1N6468US) QPL 500 Watt Surface Mount TVS
Datasheet download datasheet 1N6466US Datasheet
Additional preview pages of the 1N6466US datasheet.

📁 Similar Datasheet

  • 1N6466US - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microchip)
  • 1N6466US - (1N6461US - 1N6468US) Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microsemi)
  • 1N6466 - QPL 500 Watt Axial Leaded TVS (Semtech Corporation)
  • 1N6466 - TRANSIENT VOLTAGE SUPPRESSORS (Digitron Semiconductors)
  • 1N6466 - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microchip)
  • 1N6466 - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microsemi)
  • 1N646 - STANDARD RECOVERY RECTIFIERS (Digitron Semiconductors)
  • 1N646-1 - SILICON RECTIFIER (Microsemi)
  • 1N6461 - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microsemi)
  • 1N6461 - QPL 500 Watt Axial Leaded TVS (Semtech Corporation)
Other Datasheets by Semtech
  • 1N6461US - (1N6461US - 1N6468US) QPL 500 Watt Surface Mount TVS
  • 1N6462US - (1N6461US - 1N6468US) QPL 500 Watt Surface Mount TVS
  • 1N6463US - (1N6461US - 1N6468US) QPL 500 Watt Surface Mount TVS
  • 1N6464US - (1N6461US - 1N6468US) QPL 500 Watt Surface Mount TVS
  • 1N6465US - (1N6461US - 1N6468US) QPL 500 Watt Surface Mount TVS
  • 1N6467US - (1N6461US - 1N6468US) QPL 500 Watt Surface Mount TVS
  • 1N6468US - (1N6461US - 1N6468US) QPL 500 Watt Surface Mount TVS
  • 1N6073 - RECTIFIER

Full PDF Text Transcription

Click to expand full text
1N6461US THRU 1N6468US QPL 500 Watt Surface Mount TVS POWER DISCRETES Description The 1N64xx series of transient voltage suppressors are designed to protect military and commercial electronic equipment from overvoltages caused by lightning, ESD, EFT, inductive load switching, and EMP. These devices are constructed using a p-n junction TVS diode in a hermetically sealed, voidless glass package. The hermetically sealed package provides high reliability in harsh environmental conditions. TVS diodes are further characterized by their high surge capability, low operating and clamping voltages, and a theoretically instantaneous response time. This makes them ideal for use as board level protection for sensitive semiconductor components. These devices are DESC QPL qualified to MIL-S-19500/ 551.
