1N6130AUS - 500W Bipolar Transient Voltage Suppressor Surface Mount

Download the 1N6130AUS datasheet PDF (1N6102US included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 500w bipolar transient voltage suppressor surface mount.

Features

  • Quick reference data VBR MIN = 6.12 -180V VRWM = 5.2 - 152V VC (max) = 11 - 273V I(BR) 1N6102 - 1N6137 = 5mA - 175mA Electrical Specifications Electrical specifications @ TA = 25°C unless otherwise specified. Low dynamic impedance Hermetically sealed non-cavity construction 500 watt peak pulse power 1.5W continuous These products are qualified to MIL-PRF-19500/516 and are preferred parts as listed in MIL-HDBK-5961. They can be supplied fully released as JANTX, JANTXV and JANS versions. Device.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N6102US-Semtech.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N6130AUS
Manufacturer SEMTECH
File Size 39.67 KB
Description 500W Bipolar Transient Voltage Suppressor Surface Mount
Datasheet download datasheet 1N6130AUS Datasheet

📁 Similar Datasheet

  • 1N6130A - QPL 500 Watt Axial Leaded TVS (Semtech Corporation)
  • 1N6130A - TRANSIENT VOLTAGE SUPPRESSOR BI-DIRECTIONAL DIODES (SENSITRON SEMICONDUCTOR)
  • 1N6130A - Voidless Hermetically Sealed Bidirectional Transient Voltage Suppressors (Microsemi)
  • 1N6130 - 500W BI-POLARITY TRANSIENT VOLTAGE SUPPRESSORS (Semtech Corporation)
  • 1N6130 - TRANSIENT VOLTAGE SUPPRESSOR BI-DIRECTIONAL DIODES (SENSITRON SEMICONDUCTOR)
  • 1N6131 - 500W BI-POLARITY TRANSIENT VOLTAGE SUPPRESSORS (Semtech Corporation)
  • 1N6131 - TRANSIENT VOLTAGE SUPPRESSOR BI-DIRECTIONAL DIODES (SENSITRON SEMICONDUCTOR)
  • 1N6131A - QPL 500 Watt Axial Leaded TVS (Semtech Corporation)
  • 1N6131A - TRANSIENT VOLTAGE SUPPRESSOR BI-DIRECTIONAL DIODES (SENSITRON SEMICONDUCTOR)
  • 1N6131A - Voidless Hermetically Sealed Bidirectional Transient Voltage Suppressors (Microsemi)
Other Datasheets by Semtech
  • 1N6130US - 500W Bipolar Transient Voltage Suppressor Surface Mount
  • 1N6131AUS - 500W Bipolar Transient Voltage Suppressor Surface Mount
  • 1N6131US - 500W Bipolar Transient Voltage Suppressor Surface Mount
  • 1N6132AUS - 500W Bipolar Transient Voltage Suppressor Surface Mount
  • 1N6132US - 500W Bipolar Transient Voltage Suppressor Surface Mount
  • 1N6133AUS - 500W Bipolar Transient Voltage Suppressor Surface Mount
  • 1N6133US - 500W Bipolar Transient Voltage Suppressor Surface Mount
  • 1N6134AUS - 500W Bipolar Transient Voltage Suppressor Surface Mount

Full PDF Text Transcription

Click to expand full text

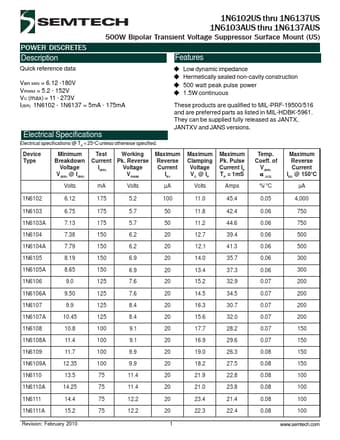

1N6102US thru 1N6137US 1N6103AUS thru 1N6137AUS 500W Bipolar Transient Voltage Suppressor Surface Mount (US) POWER DISCRETES Description Features Quick reference data VBR MIN = 6.12 -180V VRWM = 5.2 - 152V VC (max) = 11 - 273V I(BR) 1N6102 - 1N6137 = 5mA - 175mA Electrical Specifications Electrical specifications @ TA = 25°C unless otherwise specified. Low dynamic impedance Hermetically sealed non-cavity construction 500 watt peak pulse power 1.5W continuous These products are qualified to MIL-PRF-19500/516 and are preferred parts as listed in MIL-HDBK-5961. They can be supplied fully released as JANTX, JANTXV and JANS versions. Device Type Minimum Breakdown Voltage V(BR) @ I(BR) Test Current I(BR) Working Pk.
