UCLAMP2511T Low Profile Clamp 1-Line ESD protection

Semtech Corporation

UCLAMP2511T Description

PROTECTION PRODUCTS - MicroClamp® .
The μClamp series of Transient Voltage Suppressors (TVS) are designed to replace multilayer varistors (MLVs) in portable applications such as cell pho.

UCLAMP2511T Features

* Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (tp = 5/50ns) Cable Discharge Event (CDE) Ultra-small package (1.0 x 0.6 x 0.4mm) Protects one data line Low reverse current: 10nA typical (VR=2.5V) Working voltage: 2.5V Low leakage curr

UCLAMP2511T Applications

* such as cell phones, notebook computers, and PDAs. They offer superior electrical characteristics such as lower clamping voltage and no device degradation when compared to MLVs. They are designed to protect sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD),

📥 Download Datasheet

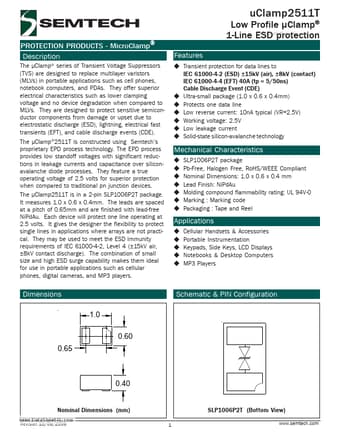

UCLAMP2511T Datasheet Preview — Preview of UCLAMP2511T PDF

Datasheet Details

Part number: UCLAMP2511T
Manufacturer: Semtech Corporation
File Size: 184.69 KB
Datasheet: UCLAMP2511T_SemtechCorporation.pdf
Description: Low Profile Clamp 1-Line ESD protection
