TF202 - USB Upstream Port Filter

Semtech Corporation

TF202 Description

STF202-22 USB Upstream Port Filter & TVS For EMI Filtering and ESD Protection Objective - March 03, 2000 & STF202-30 TEL:805-498-2111 FAX:805-498-3.
The STF202 is a combination EMI filter and line termination device with integrated TVS diodes for use on upstream USB ports.

TF202 Features

* Bidirectional EMI/RFI filtering and line termination
* with integrated ESD protection ESD protection for USB power (VBUS) and data lines (D+ & D-) to IEC 1000-4-2 Level 4 Filtering and termination for two USB data lines Di

TF202 Applications

* USB Hubs
* Portable electronics
* Cellular Handsets
* Peripherals
* Servers, Desktop, Notebook, and Handheld Computers ORDERING INFORMATION Part Number STF202-22.TC STF202-30.TC Series Resistor 22Ω 30Ω Qty per Reel 3,000 3,000 Reel Size 7” 7” COMPONENT VAL

📥 Download Datasheet

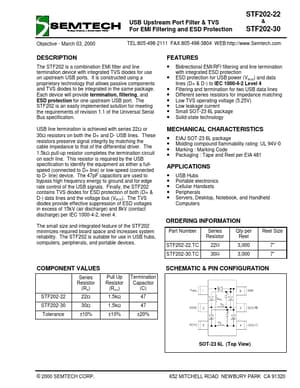

TF202 Datasheet Preview — Preview of TF202 PDF

Datasheet Details

Part number: TF202
Manufacturer: Semtech Corporation
File Size: 164.21 KB
Datasheet: TF202_SemtechCorporation.pdf
Description: USB Upstream Port Filter
