SMDA12TB TVS

SMDA12TB Description

SMDA05 THRU SMDA24 Unidirectional TVS Array for Protection of Four Lines PROTECTION PRODUCTS .
The SMDAxx series of TVS arrays are designed to provide undirectional protection for sensitive electronics from damage or latch-up due to ESD, lightni.

SMDA12TB Features

* u Transient protection for data lines to IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 12A (8/20µs) Undirectional protection Small SO-8 package Protects four I/O lines Working voltages: 5V, 12V, 15V and 24V Low leakage current Low operating

SMDA12TB Applications

* RS-232 data lines Microprocessor based equipment Notebooks, Desktops, & Servers Instrumentation LAN/WAN equipment Peripherals Serial and Parallel Ports Schematic & PIN Configuration 1 8 2 7 3 6 4 5 SO-8 (Top View) Revision 9/2000 1 www. semtech. com SMDA05 THRU SMDA24 PROTECTION PRODUCTS Ab

📥 Download Datasheet

Preview of SMDA12TB PDF

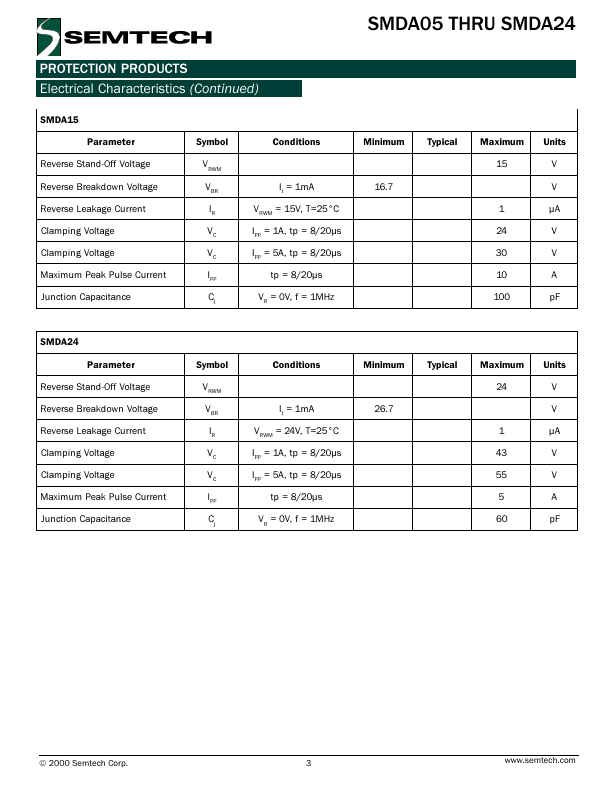

datasheet Preview Page 2 datasheet Preview Page 3
