SC2442H - High Performance Wide Input Range Dual Synchronous Buck Controller

This page provides the datasheet information for the SC2442H, a member of the SC2442 High Performance Wide Input Range Dual Synchronous Buck Controller family.

Datasheet Summary

Description

SC2442 and SC2442H are high performance dual buck converter controllers that can be configured for a variety of synchronous buck applications where efficiency is most important.

Both converters are synchronized to prevent beat frequencies.

Features

  • include: bootstrapping for high side drive supplies, asynchronous mode start up, power up sequencing to prevent latchups, individual soft start for each convertor, bootstrapped drivers for high side N-channel MOSFETs, input side current sensing, dual mode current limit with hiccup, enable and external frequency synchronization. The SC2442 operates over the range of 4.75V to 30V and SC2442H operates over the range of 4.75V to 36V. Typical.

📥 Download Datasheet

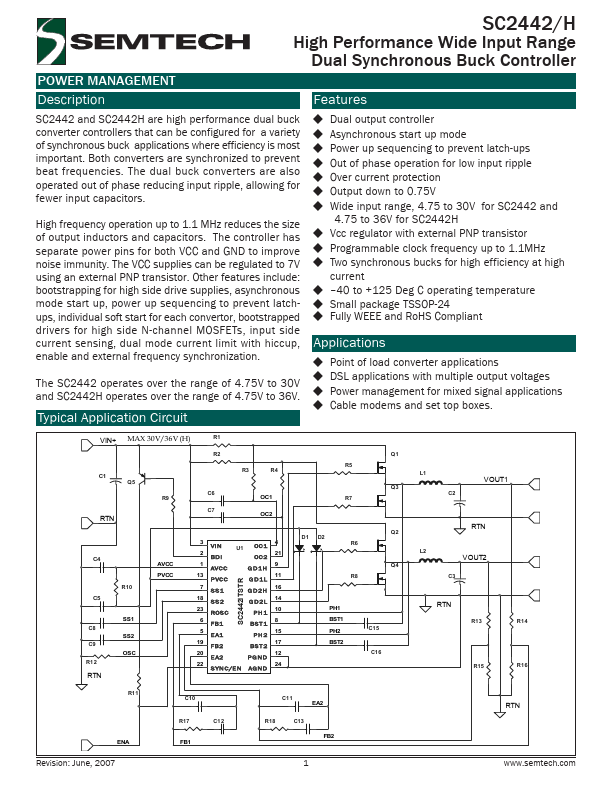

Datasheet preview – SC2442H

Datasheet Details

Part number SC2442H
Manufacturer Semtech Corporation
File Size 326.25 KB
Description High Performance Wide Input Range Dual Synchronous Buck Controller
Datasheet download datasheet SC2442H Datasheet

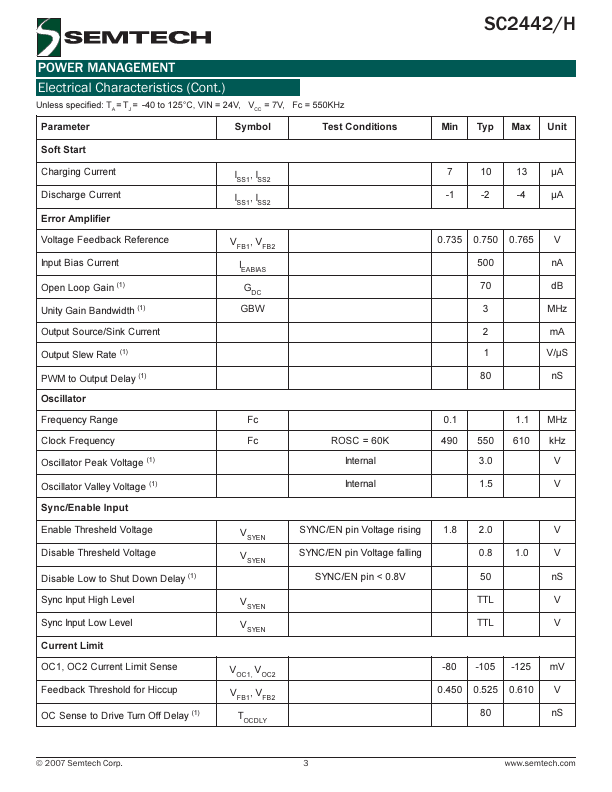

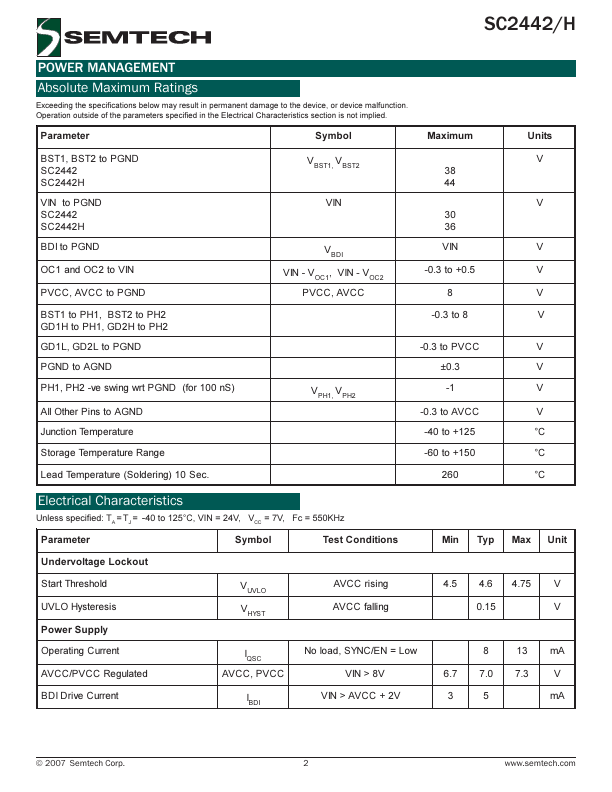

Additional preview pages of the SC2442H datasheet.

📁 Similar Datasheet

  • SC244 - SFP/SFP+ CAGES&CONNECTOR (VITALCONN)
  • SC240 - (SC2xx) Thyristors / TRIAC (Semitronics)
  • SC2402 - High Sensitive Digital-Bipolar Hall Effect Sensor (Semiment)
  • SC2402A - 24 CHARACTERS x 2 LINES Display (ETC)
  • SC241 - (SC2xx) Thyristors / TRIAC (Semitronics)
  • SC241 - SFP/SFP+ CAGES&CONNECTOR (VITALCONN)
  • SC241xx - SFP/SFP+ CAGES&CONNECTOR (VITALCONN)
  • SC242 - SFP/SFP+ CAGES&CONNECTOR (VITALCONN)
  • SC243 - SFP/SFP+ CAGES&CONNECTOR (VITALCONN)
  • SC2430SO-N - Programmable Digital-Unipolar Hall Effect Sensor (Semiment)
Other Datasheets by Semtech Corporation
  • SC2442 - High Performance Wide Input Range Dual Synchronous Buck Controller
  • SC2440 - 2.5 MHz Dual Switching Regulator
  • SC2441 - Very Low Input Voltage 2-Phase Synchronous Step-down Controllers
  • SC2441A - 1.8V to 20V Input 2-Phase Synchronous Step-down Controllers
  • SC2443 - Dual-Phase Single or Two Output Synchronous Step-Down Controller
  • SC2446 - Dual-Phase Single or Two Output Synchronous Step-Down Controller
  • SC2446A - Dual-Phase Single or Two Output Synchronous Step-Down Controller
  • SC2447 - Dual-Phase Single or Two Output Synchronous Step-Down Controller

Full PDF Text Transcription

Click to expand full text
SC2442/H High Performance Wide Input Range Dual Synchronous Buck Controller POWER MANAGEMENT Description SC2442 and SC2442H are high performance dual buck converter controllers that can be configured for a variety of synchronous buck applications where efficiency is most important. Both converters are synchronized to prevent beat frequencies. The dual buck converters are also operated out of phase reducing input ripple, allowing for fewer input capacitors. High frequency operation up to 1.1 MHz reduces the size of output inductors and capacitors. The controller has separate power pins for both VCC and GND to improve noise immunity. The VCC supplies can be regulated to 7V using an external PNP transistor.
