SC1162 - PROGRAMMABLE SYNCHRONOUS DC/DC CONVERTER

Name: SC1162
SKU: SC1162-273508

Semtech Corporation

📥 Download Datasheet

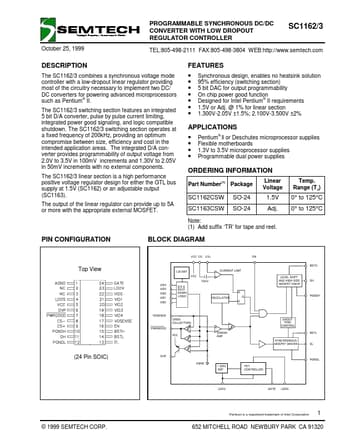

SC1162 Datasheet Preview — Preview of SC1162 PDF

Datasheet Details

Part number	SC1162
Manufacturer	Semtech Corporation
File Size	125.19 KB
Description	PROGRAMMABLE SYNCHRONOUS DC/DC CONVERTER
Datasheet	SC1162_SemtechCorporation.pdf

SC1162 Product details

Description

The SC1162/3 combines a synchronous voltage mode controller with a low-dropout linear regulator providing most of the circuitry necessary to implement two DC/ DC converters for powering advanced microprocessors ® such as Pentium II.

Features

an integrated 5 bit D/A converter, pulse by pulse current limiting, integrated power good signaling, and logic compatible shutdown. The SC1162/3 switching section operates at a fixed frequency of 200kHz, providing an optimum compromise between size, efficiency and cost in the intended.
