RCLAMP0524J - TVS Array

Download the RCLAMP0524J datasheet PDF (RCLAMP0522J included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for tvs array.

Description

RailClamps® are ultra low capacitance TVS arrays designed to protect high speed data interfaces.

Features

  • ‹ ESD protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-5 (Lightning) 5A (8/20μs) IEC 61000-4-4 (EFT) 40A (5/50ns) Package design optimized for high speed lines Flow-Through design Protects four I/O lines Low capacitance: 0.3pF typical (I/O to I/O) Low clamping voltage Low operating voltage: 5V Solid-state silicon-avalanche technology SLP2710P8 8-pin package (2.7 x 1.0 x 0.58mm) RoHS/WEEE Compliant Lead Pitch: 0.5mm Lead finish: NiPdAu Marking: M.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (RCLAMP0522J_SemtechCorporation.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by Semtech Corporation

Full PDF Text Transcription

Click to expand full text

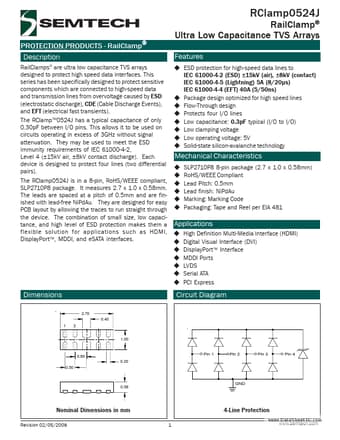

PROTECTION PRODUCTS - RailClamp® www.DataSheet4U.com Description RailClamps® are ultra low capacitance TVS arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients). The RClampTM0524J has a typical capacitance of only 0.30pF between I/O pins. This allows it to be used on circuits operating in excess of 3GHz without signal attenuation. They may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±15kV air, ±8kV contact discharge). Each device is designed to protect four lines (two differential pairs).
