SMF30A, SMF3.3A - Transient Voltage Suppressors

Name: SMF30A
SKU: SMF30A-1555335

Semiware

The SMF30A by Semiware is a Transient Voltage Suppressors. Below is the official datasheet preview.

Datasheet Details

Part number	SMF30A, SMF3.3A
Manufacturer	Semiware
File Size	411.93 KB
Description	Transient Voltage Suppressors
Datasheet	SMF3.3A-Semiware.pdf
Note	This datasheet PDF includes multiple part numbers: SMF30A, SMF3.3A. Please refer to the document for exact specifications by model.

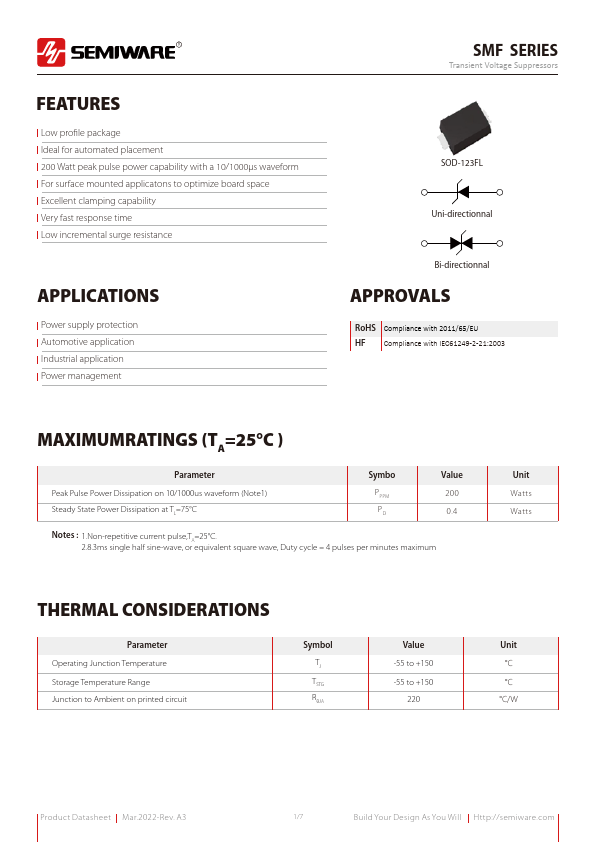

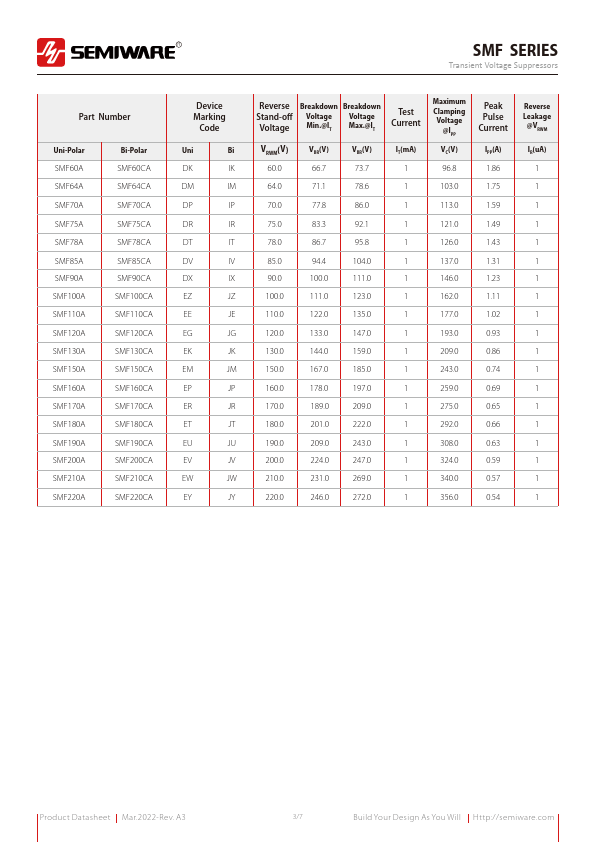

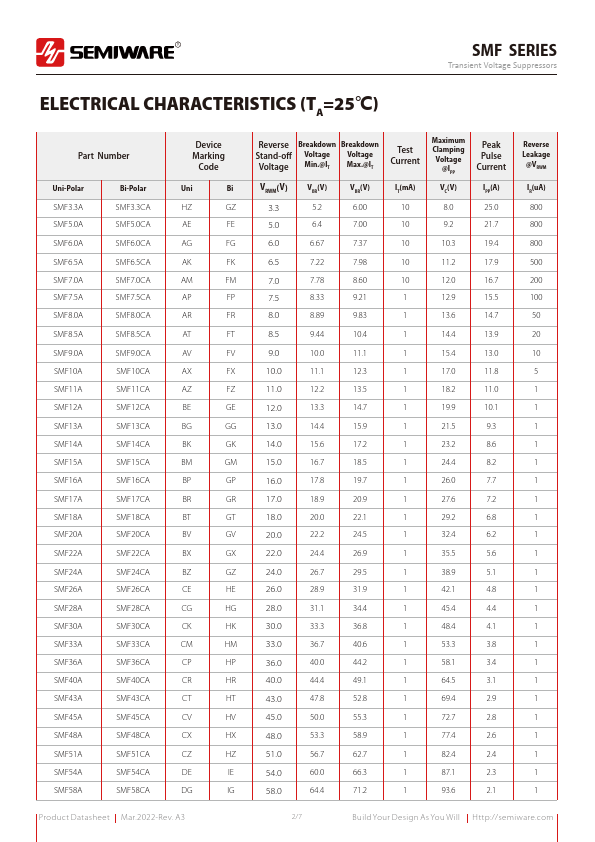

Additional preview pages of the SMF30A datasheet.

Low proﬁle package Ideal for automated placement 200 Watt peak pulse power capability with a 10/1000μs waveform For surface mounted applicatons to optimize board space Excellent clamping capability Very fast response time Low incremental surge resistance.
