SMB15J14CA - Transient Voltage Suppressors

Product Overview

Semiware

Part number	SMB15J14CA
Manufacturer	Semiware
File Size	296.37 KB
Description	Transient Voltage Suppressors
Datasheet	SMB15J14CA Datasheet
Note	This datasheet PDF includes multiple part numbers: SMB15J14CA, SMB15J11A. Please refer to the document for exact specifications by model.

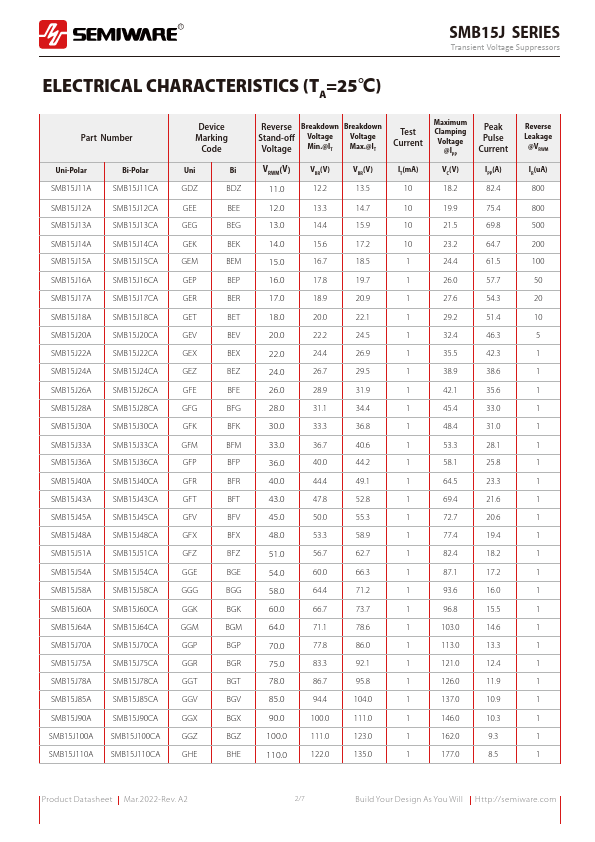

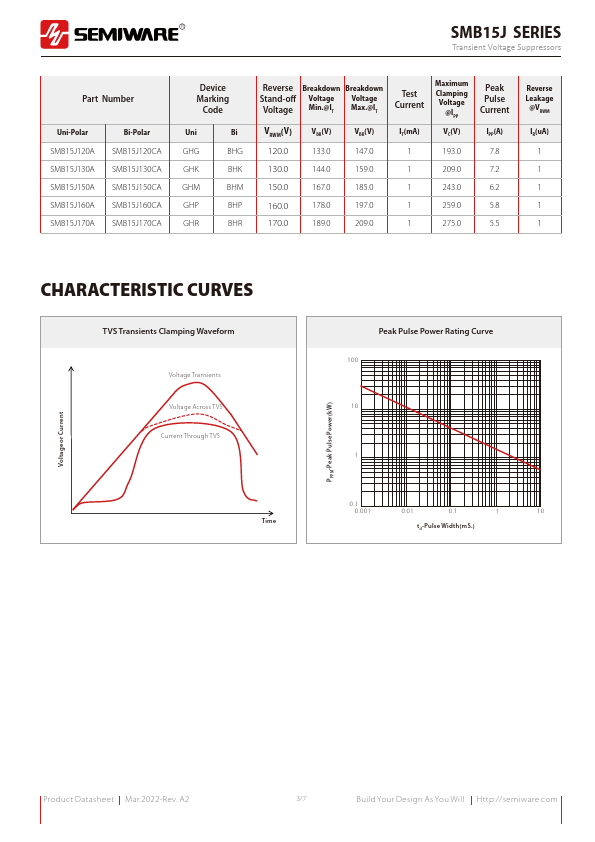

Additional preview pages of the SMB15J14CA datasheet.

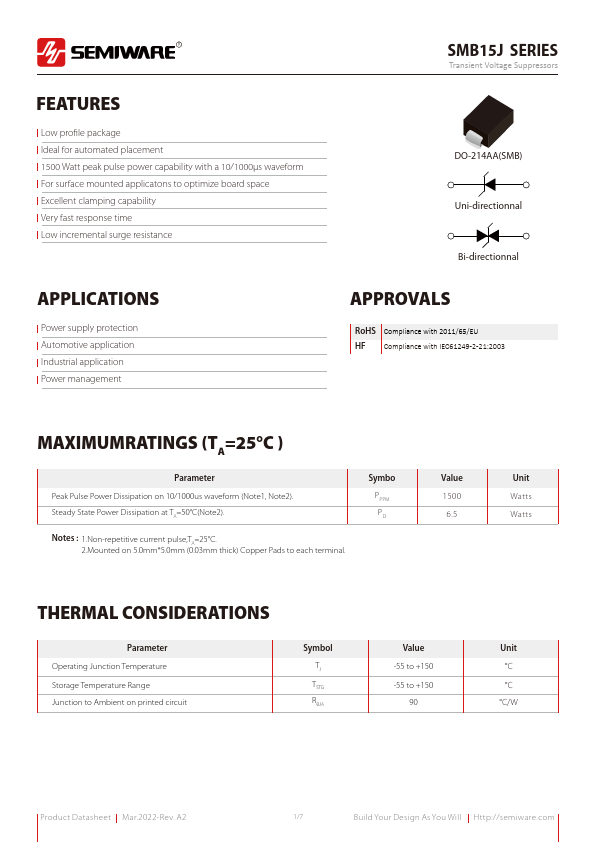

Low proﬁle package Ideal for automated placement 1500 Watt peak pulse power capability with a 10/1000μs waveform For surface mounted applicatons to optimize board space Excellent clamping capability Very fast response time Low incremental surge resistance.
