P0080SC - Thyristor Surge Suppressor

Features

  • Excellent capability of absorbing transient surge Quick response to surge voltage Eliminates over voltage caused by fast rising transients Solid-state silicon te chnology, non degenera P0080SC Thyristor Surge Suppressor SMB(DO-214AA).

📥 Download Datasheet

Datasheet Details

Part number P0080SC
Manufacturer Semiware
File Size 550.20 KB
Description Thyristor Surge Suppressor
Datasheet download datasheet P0080SC Datasheet

📁 Similar Datasheet

  • P0080SC - PROTECTION THYRISTORS (MEI SEMI)
  • P0080SC - Transient Voltage Suppressors (RUILON)
  • P0080SC - Thyristor Surge Suppressors (Brightking)
  • P0080SC - Thyristors Solid Protection Device Bidirectional transient voltage suppressors (WPM)
  • P0080SC - MicroCapacitance SIDACtor Device (Littelfuse)
  • P0080SC - TSS (JIEJIE)
  • P0080SC - Thyristor Surge Suppressor (HUAAN)
  • P0080SCLRP - SIDACtor Protection Thyristors (Littelfuse)
  • P0080SCMCLRP - SIDACtor Protection Thyristors (Littelfuse)
  • P0080S - Thyristor Surge Protection Devices (SEMITECH)
Other Datasheets by Semiware
  • P0080SC - Thyristor Surge Suppressors
  • P0080SA - Thyristor Surge Suppressors
  • P0080SB - Thyristor Surge Suppressors
  • P0080TB - Thyristor Surge Suppressors
  • P0060SA - Thyristor Surge Suppressors
  • P0060SB - Thyristor Surge Suppressors
  • P0060SC - Thyristor Surge Suppressors
  • P0060TB - Thyristor Surge Suppressors

Full PDF Text Transcription

Click to expand full text

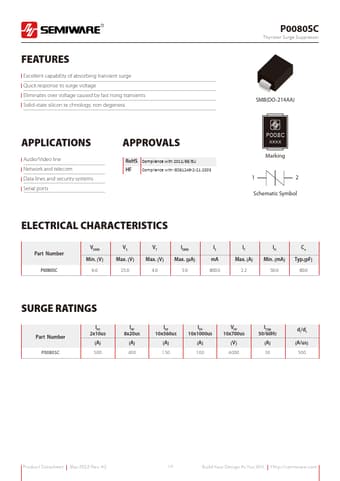

R FEATURES Excellent capability of absorbing transient surge Quick response to surge voltage Eliminates over voltage caused by fast rising transients Solid-state silicon te chnology, non degenera P0080SC Thyristor Surge Suppressor SMB(DO-214AA) APPLICATIONS Audio/Video line Network and telecom Data lines and security systems Serial ports APPROVALS RoHS Compliance with 2011/65/EU HF Compliance with IEC61249-2-21:2003 P008C xxxx Marking 1 2 Schematic Symbol ELECTRICAL CHARACTERISTICS Part Number P0080SC VDRM Min. (V) 6.0 VS Max. (V) 25.0 VT Max. (V) 4.0 IDRM Max. (µA) 5.0 IS mA 800.0 IT Max. (A) 2.2 IH Min. (mA) 50.0 Co Typ.(pF) 80.
