SC4003, SC4002 Linear Hall Effect Sensor

SC4003 Description

SC4002/3/5 www.semiment.com Linear Hall Effect Sensor Ics with Analog output .
The SC400X are high performance small versatile linear Hall-Effect devices which are operated by the magnetic field from a permanent magnet or an elec.

SC4003 Features

* 3.5 to 10.5V wide supply voltage range
* 4.5mA power consumption for 5 VDC
* Output voltage proportional to magnetic flux density
* -40℃ to 150℃ wide ambient temperature range
* Fast power-on time
* Resistant to mechanical stress
* 3-pin SIP and SOT89-3 package are avai

SC4003 Applications

* Angular sensing
* Position sensing
* Over-current detection
* BLDC motor current monitoring

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SC4003, SC4002. Please refer to the document for exact specifications by model.

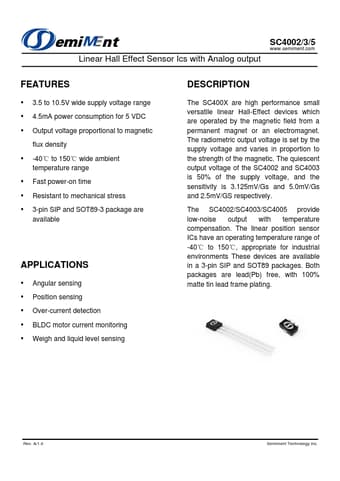

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC4003, SC4002
Manufacturer
Semiment
File Size
164.14 KB
Datasheet
SC4002-Semiment.pdf
Description
Linear Hall Effect Sensor
Note
This datasheet PDF includes multiple part numbers: SC4003, SC4002.
Please refer to the document for exact specifications by model.
