SC2464, SC2462 Hall Effect Sensor

SC2464 Description

.
The SC246X family, produced with BiCMOS technology, is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior s.

SC2464 Features

* Digital Omni-polar Hall-Effect sensor
* High chopping frequency
* Very high sensitivity
* Superior temperature stability
* Supports a wide voltage range - 2.5 to 24V - Operating from unregulated supply
* Reverse battery protection (up to 28V)
* Over-voltage protection a

SC2464 Applications

* Flow meters
* Magnetic encoding
* Proxmimity sensing
* Garage door openers
* Power sliding doors

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SC2464, SC2462. Please refer to the document for exact specifications by model.

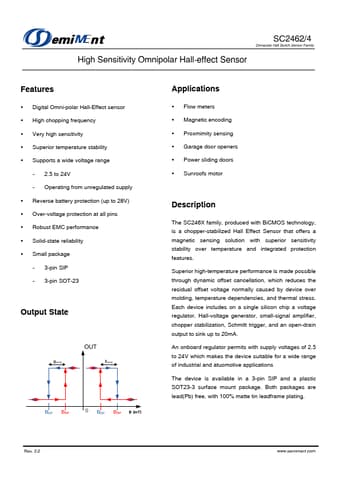

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SC2464, SC2462
Manufacturer
Semiment
File Size
327.12 KB
Datasheet
SC2462-Semiment.pdf
Description
Hall Effect Sensor
Note
This datasheet PDF includes multiple part numbers: SC2464, SC2462.
Please refer to the document for exact specifications by model.
