SC2434UA, SC2430UA Programmable Digital-Unipolar Hall Effect Sensor

Semiment

Description

SC243X www.semiment.com Programmable Digital-Unipolar Hall Effect Sensor .
The SC243X family, produced with Bi-CMOS technology, is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior.

📥 Download Datasheet

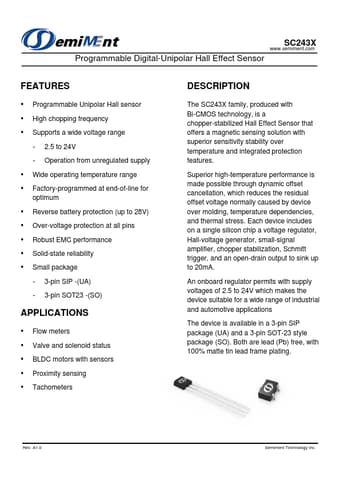

SC2434UA Datasheet Preview — This datasheet PDF includes multiple part numbers: SC2434UA, SC2430UA. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SC2434UA, SC2430UA
Manufacturer: Semiment
File Size: 307.08 KB
Datasheet: SC2430UA-Semiment.pdf
Description: Programmable Digital-Unipolar Hall Effect Sensor
Note: This datasheet PDF includes multiple part numbers: SC2434UA, SC2430UA.
Please refer to the document for exact specifications by model.

Features

* Programmable Unipolar Hall sensor
* High chopping frequency
* Supports a wide voltage range - 2.5 to 24V - Operation from unregulated supply
* Wide operating temperature range
* Factory-programmed at end-of-line for optimum
* Reverse battery protection (up to 28V)
* Ove

Applications

* Flow meters
* Valve and solenoid status
* BLDC motors with sensors
* Proximity sensing
