SKNa26 - Stud Diode

Semikron

The SKNa26 by Semikron is a Stud Diode. Below is the official datasheet preview.

📥 Download Datasheet

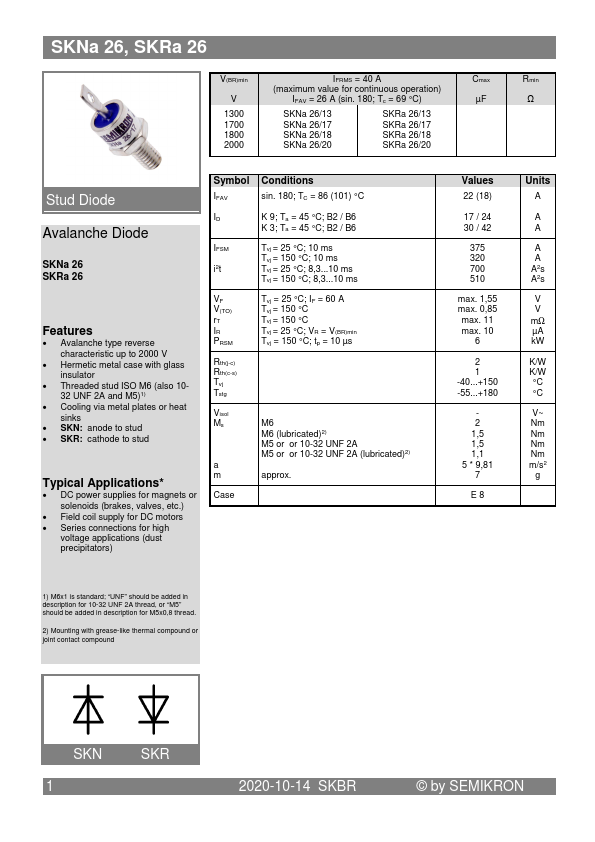

SKNa26 Stud Diode by Semikron - Datasheet Preview — Official preview page of the SKNa26 Stud Diode datasheet (Semikron).

Datasheet Details

Part number	SKNa26
Manufacturer	Semikron
File Size	189.75 KB
Description	Stud Diode
Datasheet	SKNa26-Semikron.pdf

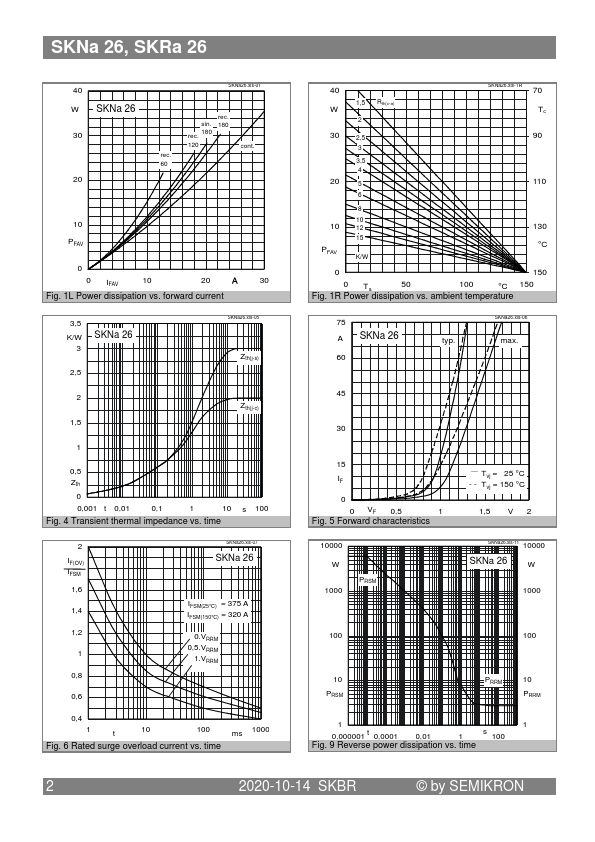

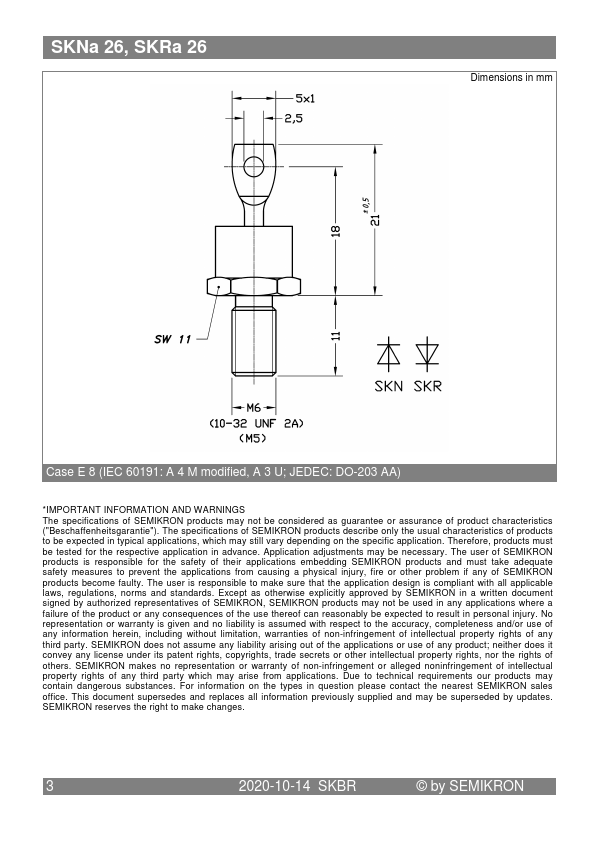

Additional preview pages of the SKNa26 datasheet.

SKNa26 Product details

Description

for 10-32 UNF 2A thread, or “M5” should be added in description for M5x0,8 thread.

Features

Avalanche type reverse characteristic up to 2000 V.
Hermetic metal case with glass insulator.
Threaded stud ISO M6 (also 1032 UNF 2A and M5)1).
Cooling via metal plates or heat sinks.
SKN: anode to stud.
SKR: cathode to stud Typical.
