DBI25-04P - Power Bridge Rectifier

Product Overview

Semikron

📥 Download Datasheet

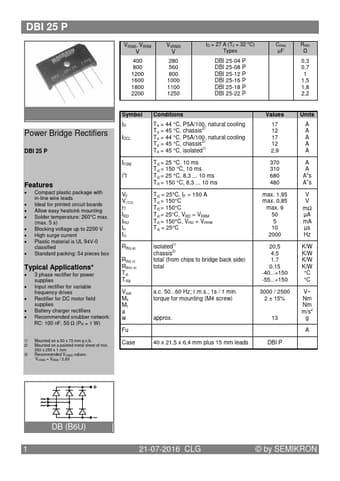

DBI25-04P Power Bridge Rectifier by Semikron - Datasheet Preview — Datasheet preview – DBI25-04P

Datasheet Details

Part number	DBI25-04P
Manufacturer	Semikron
File Size	704.65 KB
Description	Power Bridge Rectifier
Datasheet	DBI25-04P Datasheet
Additional preview pages of the DBI25-04P datasheet.

Product details

Features

Compact plastic package with in-line wire leads.
Ideal for printed circuit boards.
Allow easy heatsink mounting.
Solder temperature: 260°C max. (max. 5 s).
Blocking voltage up to 2200 V.
High surge current.
Plastic material is UL 94V-0 classified.
Standard packing: 54 pieces box Typical.
