SKiiP1092GB170 - intelligent Power PACK halfbridge

Features

  • Low thermal impedance.
  • Optimal thermal management with integrated heatsink.
  • Pressure contact technology with increased power cycling capability, compact design.
  • Low stray inductance.
  • High power, small losses.
  • Overtemp. protection.
  • Short circuit protection.
  • Isolated power supply 1) Theatsink = 25 °C, unless otherwise specified 2) CAL = Controlled Axial Lifetime Technology (soft and fast) 3) without driver 4) Driver input to.

📥 Download Datasheet

Datasheet Details

Part number SKiiP1092GB170
Manufacturer Semikron International
File Size 42.71 KB
Description intelligent Power PACK halfbridge
Datasheet download datasheet SKiiP1092GB170 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SKIIP1092GB160044 IGBT Semikron
SKIIP1092GB160470W IGBT Semikron
SKIIP102GD120304W IGBT Semikron
SKIIP102GDL120403W IGBT Semikron
SKiiP11AC126V10 IGBT Semikron

Other Datasheets by Semikron International

Part Number Description
SKIIP1092GB170-474CTV IGBT
SKIIP1092GB170-4D IGBT
SKIIP1013GB122-2DL IGBT
SKIIP1013GB172-2DL IGBT
SKiiP10NAB12T4V1 IGBT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

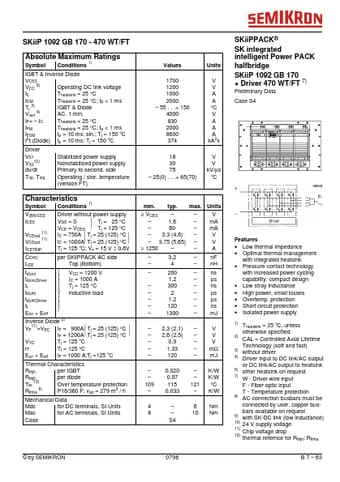

SKiiP 1092 GB 170 - 470 WT/FT Absolute Maximum Ratings Symbol Conditions 1) IGBT & Inverse Diode VCES VCC 9) Operating DC link voltage IC Theatsink = 25 °C ICM Tj 3) Visol 4) Theatsink = 25 °C; tp < 1 ms IGBT & Diode AC, 1 min. IF= – IC Theatsink = 25 °C IFM Theatsink = 25 °C; tp < 1 ms IFSM tp = 10 ms; sin.; Tj = 150 °C I2t (Diode) tp = 10 ms; Tj = 150 °C Driver VS1 VS210) dv/dt Top, Tstg Stabilized power supply Nonstabilized power supply Primary to second. side Operating / stor. temperature (version FT) Values Units 1700 1200 1000 2000 – 55 . . .+ 150 4000 830 2000 8600 374 V V A A °C V A A A kA2s 18 30 75 – 25(0) . . .
