SB1530S, SB1520S (SB1520S - SB15100S) Schottky barrier rectifier diodes

Semikron International

Description

SB 1520S SB 15100S Type Repetitive peak reverse voltage Surge peak reverse voltage Max.reverse recovery time Max.forward voltage Max.forward volta.

📥 Download Datasheet

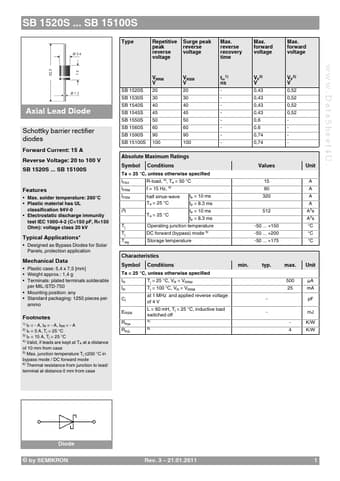

SB1530S Datasheet Preview — This datasheet PDF includes multiple part numbers: SB1530S, SB1520S. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SB1530S, SB1520S
Manufacturer: Semikron International
File Size: 193.72 KB
Datasheet: SB1520S_SemikronInternational.pdf
Description: (SB1520S - SB15100S) Schottky barrier rectifier diodes
Note: This datasheet PDF includes multiple part numbers: SB1530S, SB1520S.
Please refer to the document for exact specifications by model.

Features

* Max. solder temperature: 260°C
* Plastic material has UL classification 94V-0
* Electrostatic discharge immunity test IEC 1000-4-2 (C=150 pF, R=150 Ohm): voltage class 20 kV SB 1540S SB 1545S SB 1550S SB 1560S SB 1590S SB 15100S Absolute Maximum Ratings Symbol IFAV IFRM I

Applications

* br>
* Designed as Bypass Diodes for Solar Panels, protection application Mechanical Data
* Plastic case: 5,4 x 7,5 [mm]
* Weight approx. : 1,4 g
* Terminals: plated terminals solderable per MIL-STD-750
* Mounting position: any
* Standard packaging: 12
